HCPL-6430
  • Share:

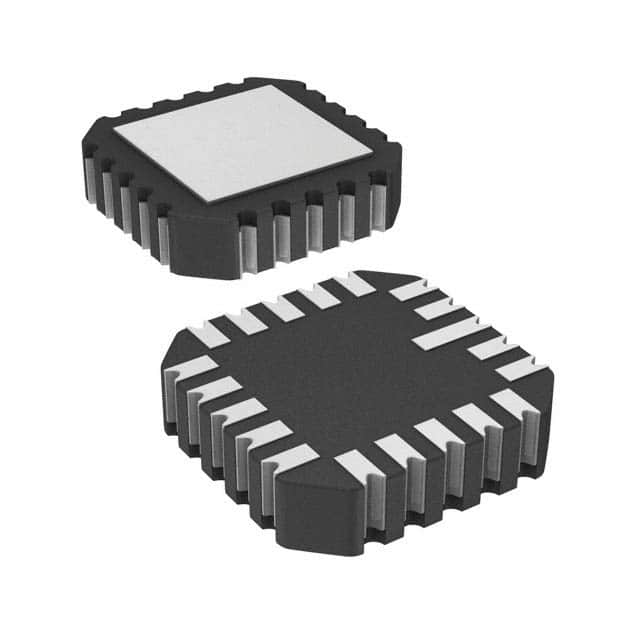

Broadcom Limited HCPL-6430

Manufacturer No:
HCPL-6430
Manufacturer:
Broadcom Limited
Package:
Tube
Datasheet:
HCPL-6430 Datasheet
ECAD Model:
-
Description:
OPTOISO 1.5KV PUSH PULL 20LCCC
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:2
Inputs - Side 1/Side 2:2/0
Voltage - Isolation:1500VDC
Common Mode Transient Immunity (Min):500V/µs
Input Type:DC
Output Type:Push-Pull, Totem Pole
Current - Output / Channel:25 mA
Data Rate:40Mbps
Propagation Delay tpLH / tpHL (Max):60ns, 60ns
Rise / Fall Time (Typ):15ns, 10ns
Voltage - Forward (Vf) (Typ):1.35V
Current - DC Forward (If) (Max):10mA
Voltage - Supply:4.75V ~ 5.25V
Operating Temperature:-55°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:20-CLCC
Supplier Device Package:20-LCCC (8.89x8.89)
0 Remaining View Similar

In Stock

$110.02
5

Please send RFQ , we will respond immediately.
