Broadcom Limited-HCPL-5230#300 - Optoisolators - Logic Output Product Specifications and Latest Quotes

Number of Channels:	2
Inputs - Side 1/Side 2:	2/0
Voltage - Isolation:	1500VDC
Common Mode Transient Immunity (Min):	1kV/µs
Input Type:	DC
Output Type:	Push-Pull, Totem Pole
Current - Output / Channel:	15 mA
Data Rate:	5MBd
Propagation Delay tpLH / tpHL (Max):	350ns, 350ns
Rise / Fall Time (Typ):	45ns, 10ns
Voltage - Forward (Vf) (Typ):	1.3V
Current - DC Forward (If) (Max):	8mA
Voltage - Supply:	4.5V ~ 20V
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	8-CSMD, Gull Wing
Supplier Device Package:	8-SMD Gull Wing

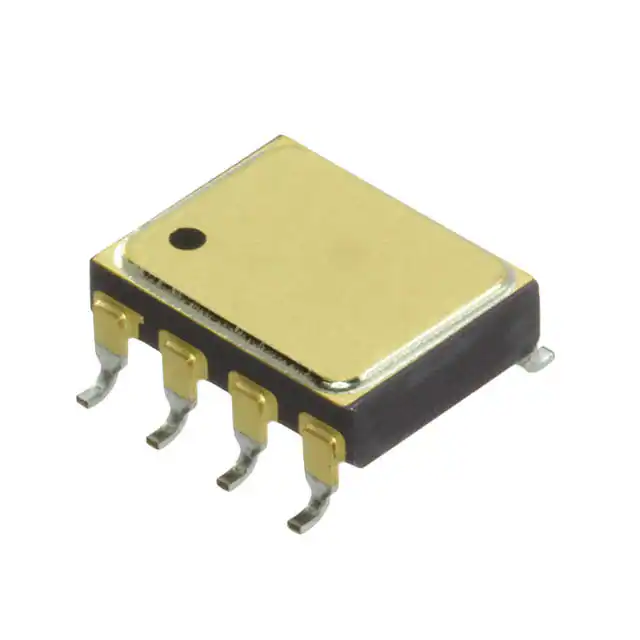

Broadcom Limited HCPL-5230#300
