Broadcom Limited-HCPL-315J-000E - Isolators - Gate Drivers Product Specifications and Latest Quotes

Technology:	Optical Coupling
Number of Channels:	2
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	15kV/µs
Propagation Delay tpLH / tpHL (Max):	500ns, 500ns
Pulse Width Distortion (Max):	300ns
Rise / Fall Time (Typ):	100ns, 100ns
Current - Output High, Low:	500mA, 500mA
Current - Peak Output:	600mA
Voltage - Forward (Vf) (Typ):	1.6V
Current - DC Forward (If) (Max):	25 mA
Voltage - Output Supply:	15V ~ 30V
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	16-SOIC (0.295", 7.50mm Width), 12 Leads
Supplier Device Package:	16-SO
Approval Agency:	CSA, IEC/EN/DIN, UR

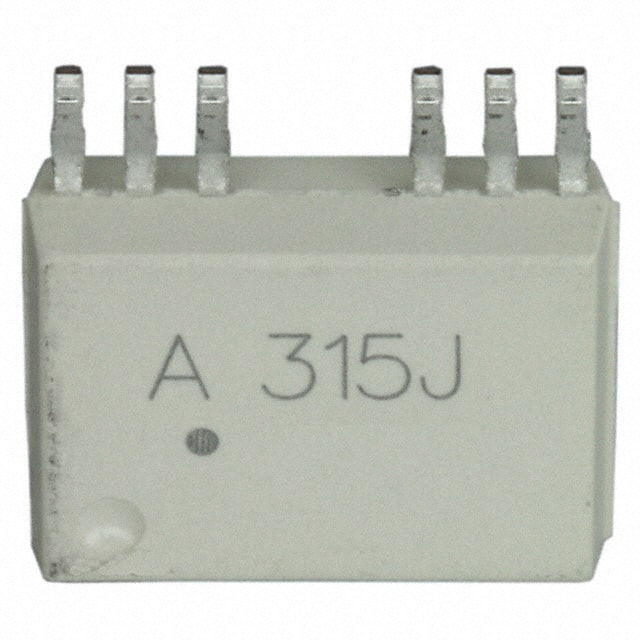

Broadcom Limited HCPL-315J-000E
