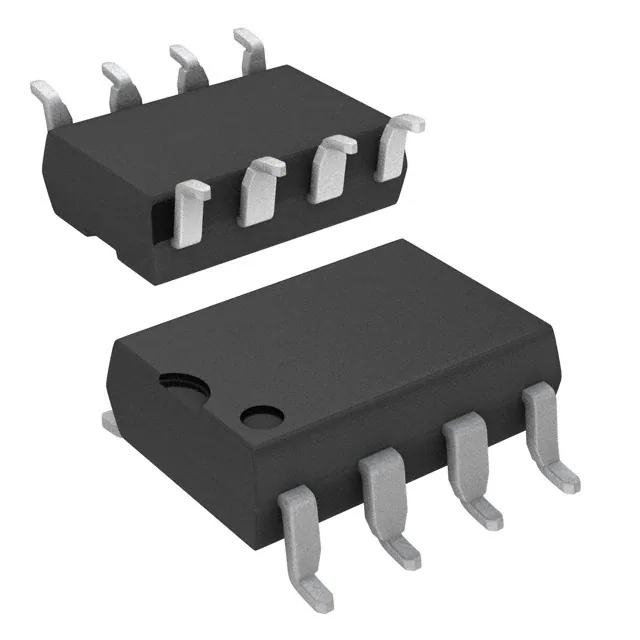

Broadcom Limited-HCPL-2300-500E - Optoisolators - Logic Output Product Specifications and Latest Quotes

Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	3750Vrms
Common Mode Transient Immunity (Min):	100V/µs
Input Type:	DC
Output Type:	Open Collector, Schottky Clamped
Current - Output / Channel:	25 mA
Data Rate:	5MBd
Propagation Delay tpLH / tpHL (Max):	160ns, 200ns
Rise / Fall Time (Typ):	40ns, 20ns
Voltage - Forward (Vf) (Typ):	1.3V
Current - DC Forward (If) (Max):	5mA (Typ)
Voltage - Supply:	4.75V ~ 5.25V
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	8-SMD, Gull Wing
Supplier Device Package:	8-DIP Gull Wing

Broadcom Limited HCPL-2300-500E
