HCPL-181-000E
  • Share:

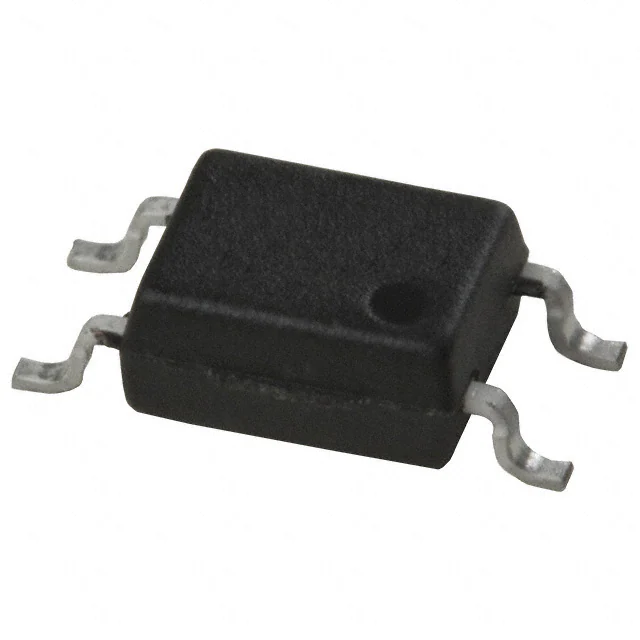

Broadcom Limited HCPL-181-000E

Manufacturer No:
HCPL-181-000E
Manufacturer:
Broadcom Limited
Package:
Tape & Reel (TR)
Datasheet:
HCPL-181-000E Datasheet
ECAD Model:
-
Description:
OPTOISO 3.75KV TRANSISTOR 4SOIC
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:1
Voltage - Isolation:3750Vrms
Current Transfer Ratio (Min):50% @ 5mA
Current Transfer Ratio (Max):600% @ 5mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):4µs, 3µs
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):80V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):200mV
Operating Temperature:-55°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:4-SOIC (0.209", 5.30mm Width)
Supplier Device Package:4-SO
0 Remaining View Similar

In Stock

$0.64
542

Please send RFQ , we will respond immediately.
