HCNW136-000E
  • Share:

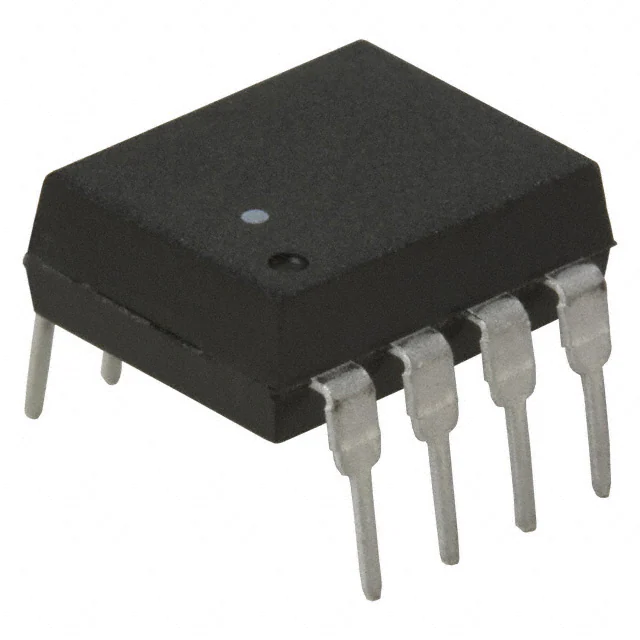

Broadcom Limited HCNW136-000E

Manufacturer No:
HCNW136-000E
Manufacturer:
Broadcom Limited
Package:
Tube
Datasheet:
HCNW136-000E Datasheet
ECAD Model:
-
Description:
OPTOISOLATOR 5KV TRANS 8DIP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):15% @ 16mA
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):1µs, 1µs (Max)
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Transistor with Base
Voltage - Output (Max):20V
Current - Output / Channel:8mA
Voltage - Forward (Vf) (Typ):1.68V
Current - DC Forward (If) (Max):25 mA
Vce Saturation (Max):-
Operating Temperature:-55°C ~ 85°C
Mounting Type:Through Hole
Package / Case:8-DIP (0.400", 10.16mm)
Supplier Device Package:8-DIP
0 Remaining View Similar

In Stock

$2.47
337

Please send RFQ , we will respond immediately.
