CNY17-4-060E
  • Share:

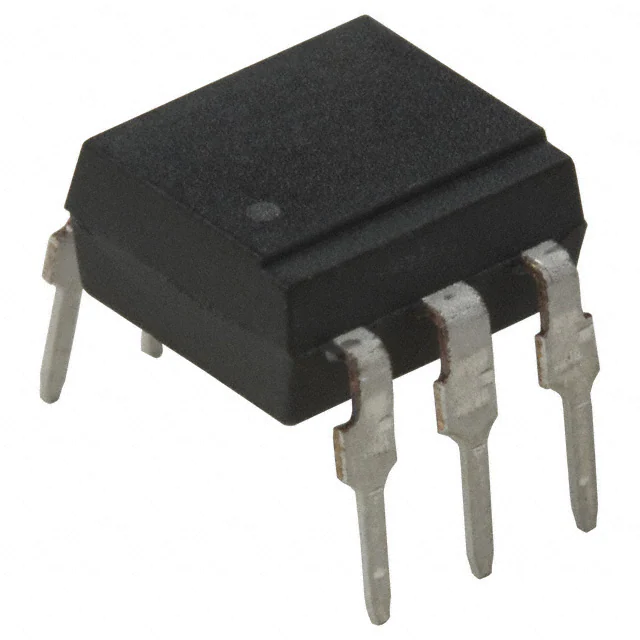

Broadcom Limited CNY17-4-060E

Manufacturer No:
CNY17-4-060E
Manufacturer:
Broadcom Limited
Package:
Tube
Datasheet:
CNY17-4-060E Datasheet
ECAD Model:
-
Description:
OPTOISO 5KV TRANS W/BASE 6DIP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):160% @ 10mA
Current Transfer Ratio (Max):320% @ 10mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):5µs, 5µs
Input Type:DC
Output Type:Transistor with Base
Voltage - Output (Max):70V
Current - Output / Channel:150mA
Voltage - Forward (Vf) (Typ):1.4V
Current - DC Forward (If) (Max):60 mA
Vce Saturation (Max):300mV
Operating Temperature:-55°C ~ 100°C
Mounting Type:Through Hole
Package / Case:6-DIP (0.300", 7.62mm)
Supplier Device Package:6-DIP
0 Remaining View Similar

In Stock

$0.20
2,695

Please send RFQ , we will respond immediately.
