Please send RFQ , we will respond immediately.

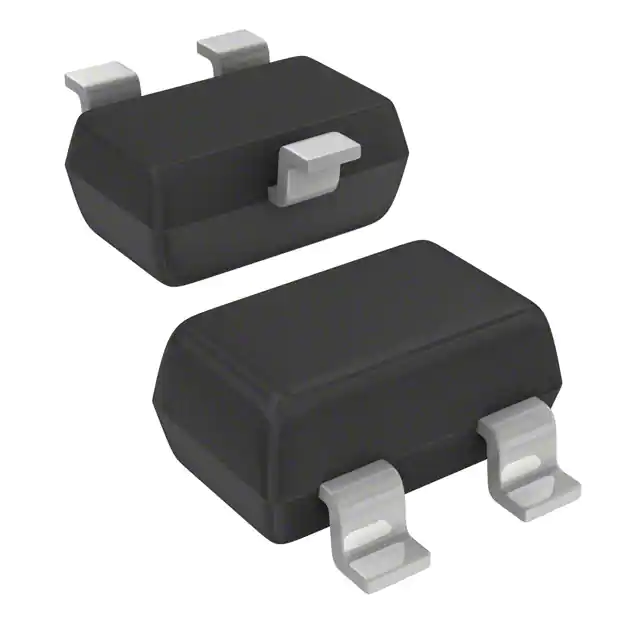

| Part Number | AT-32032-TR2G | AT-32033-TR2G | AT-32032-TR1G |
|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Obsolete | Obsolete | Obsolete |
| Transistor Type | NPN | NPN | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 5.5V | 5.5V | 5.5V |
| Frequency - Transition | - | - | - |
| Noise Figure (dB Typ @ f) | 1dB ~ 1.3dB @ 900MHz | 1dB ~ 1.3dB @ 900MHz | 1dB ~ 1.3dB @ 900MHz |
| Gain | 13.5dB ~ 15dB | 11dB ~ 12.5dB | 13.5dB ~ 15dB |
| Power - Max | 200mW | 200mW | 200mW |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 70 @ 5mA, 2.7V | 70 @ 2mA, 2.7V | 70 @ 5mA, 2.7V |
| Current - Collector (Ic) (Max) | 40mA | 32mA | 40mA |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-70, SOT-323 | TO-236-3, SC-59, SOT-23-3 | SC-70, SOT-323 |
| Supplier Device Package | SC-70-3 | SOT-23 | SC-70-3 |
