Please send RFQ , we will respond immediately.

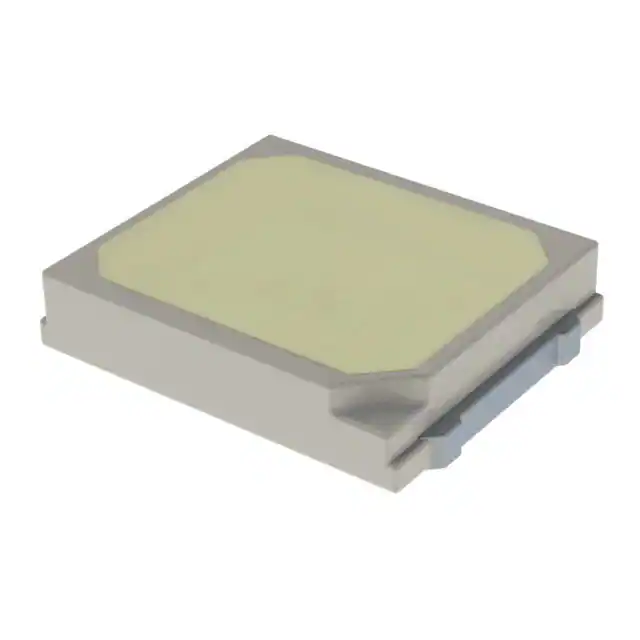

| Part Number | ASMW-LWG0-NEGDE | ASMW-LWG0-NEGFE | ASMW-LWG0-NEGBE |
|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active |
| Color | White, Cool | White, Neutral | White, Cool |
| CCT (K) | 5000K | 4000K | 6500K |
| Flux @ 85°C, Current - Test | - | - | - |
| Flux @ 25°C, Current - Test | 64lm (Typ) | 64lm (Typ) | 64lm (Typ) |
| Current - Test | 150mA | 150mA | 150mA |
| Voltage - Forward (Vf) (Typ) | 3.1V | 3.1V | 3.1V |
| Lumens/Watt @ Current - Test | 138 lm/W | 138 lm/W | 138 lm/W |
| CRI (Color Rendering Index) | 80 | 80 | 80 |
| Current - Max | 200mA | 200mA | 200mA |
| Viewing Angle | 115° | 115° | 115° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.126" L x 0.110" W (3.20mm x 2.80mm) | 0.126" L x 0.110" W (3.20mm x 2.80mm) | 0.126" L x 0.110" W (3.20mm x 2.80mm) |
| Height - Seated (Max) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) |
