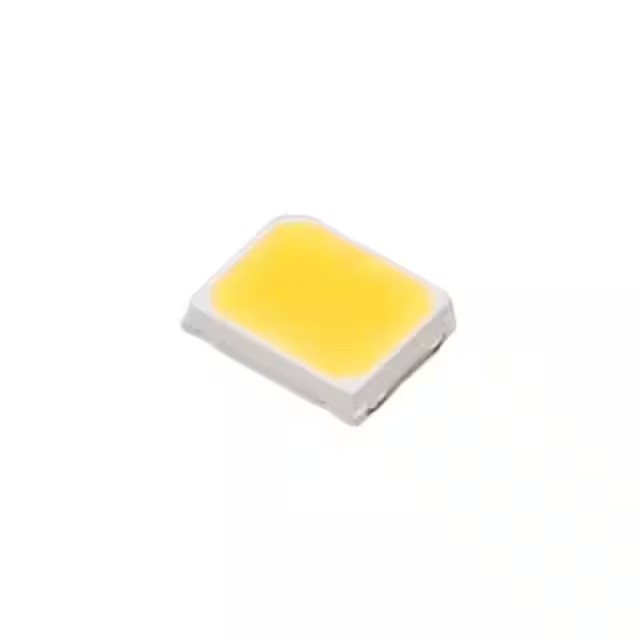

| Part Number | ASMW-FWG0-NJLH6 | ASMW-FWG0-NJLB6 | ASMW-FWG0-NJLF6 |
|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active |
| Color | White, Warm | White, Cool | White, Neutral |
| CCT (K) | 3000K | 6500K | 4000K |
| Flux @ 85°C, Current - Test | - | - | - |
| Flux @ 25°C, Current - Test | 25lm (Typ) | 23lm (Typ) | 23lm (Typ) |
| Current - Test | 60mA | 60mA | 60mA |
| Voltage - Forward (Vf) (Typ) | 2.92V | 3.11V | 3.11V |
| Lumens/Watt @ Current - Test | 140 lm/W | 123 lm/W | 123 lm/W |
| CRI (Color Rendering Index) | 80 | 80 | 80 |
| Current - Max | 100mA | 100mA | 100mA |
| Viewing Angle | 120° | 120° | 120° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1411 (3528 Metric) | 1113 (2835 Metric) | 1113 (2835 Metric) |
| Supplier Device Package | 2835 | 2835 | 2835 |
| Size / Dimension | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.138" L x 0.110" W (3.50mm x 2.80mm) |
| Height - Seated (Max) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) |
