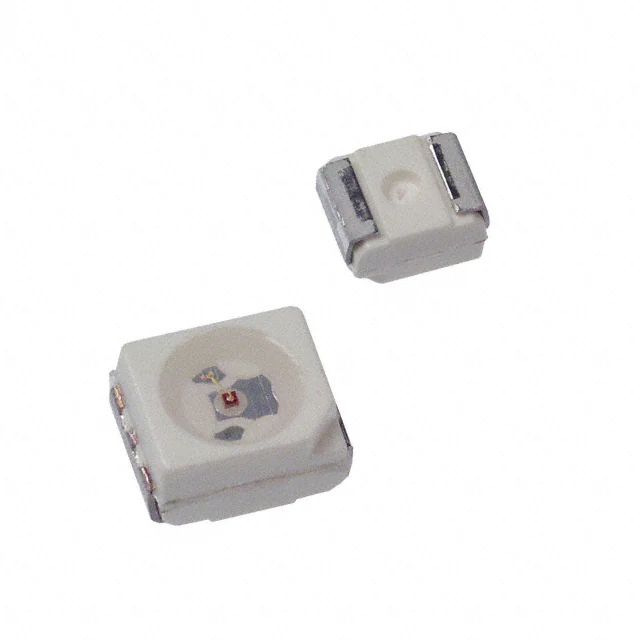

| Part Number | ASMT-UWB1-NX3D2 | ASMT-UWB1-NX3J2 | ASMT-UWB1-NX3F2 | ASMT-UWB1-NX3G2 | ASMT-UWB1-NX3E2 | ASMT-UWB1-NX3H2 | ASMT-UWB2-NX3D2 | ASMT-UWB1-NX7D2 | ASMT-UWB1-NX302 | ASMT-UWB1-NX312 | ASMT-UWB1-NX3A2 | ASMT-UWB1-NX3B2 | ASMT-UWB1-NX3C2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Color | White, Cool | White, Warm | White, Neutral | White, Warm | White, Neutral | White, Warm | White, Cool | White, Cool | White, Cool | White, Warm | White, Cool | White, Cool | White, Cool |
| Configuration | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Yellow | Yellow | Yellow | Yellow | Yellow | Yellow | - | - | Yellow | Yellow | Yellow | Yellow | Yellow |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | - | - | Diffused | Diffused | Diffused | Diffused | Diffused |
| Millicandela Rating | 2300mcd | 2300mcd | 2300mcd | 2300mcd | 2300mcd | 2300mcd | - | - | 2300mcd | 2300mcd | 2300mcd | 2300mcd | 2300mcd |
| Lens Style | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top |
| Lens Size | - | 2.20mm Dia | 2.20mm Dia | 2.20mm Dia | 2.20mm Dia | 2.20mm Dia | - | - | 2.20mm Dia | 2.20mm Dia | 2.20mm Dia | 2.20mm Dia | 2.20mm Dia |
| Voltage - Forward (Vf) (Typ) | 3.2V | 3.2V | 3.2V | 3.2V | 3.2V | 3.2V | 3.2V | 2.8V | 3.2V | 3.2V | 3.2V | 3.2V | 3.2V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA |
| Viewing Angle | 120° | 120° | 120° | 120° | 120° | 120° | 120° | 120° | 120° | 120° | 120° | 120° | 120° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | 5000K | 2700K | 4000K | 3500K | 4500K | 3000K | 5000K | 5000K | 4500K ~ 8000K | 2700K ~ 4000K | 8000K | 6500K | 5700K |
| Wavelength - Peak | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Package / Case | 2-PLCC | 4-SMD, Flat Lead Exposed Pad | 4-SMD, Flat Lead Exposed Pad | 4-SMD, Flat Lead Exposed Pad | 4-SMD, Flat Lead Exposed Pad | 4-SMD, Flat Lead Exposed Pad | 2-PLCC | 2-PLCC | 4-SMD, Flat Lead Exposed Pad | 4-SMD, Flat Lead Exposed Pad | 2-PLCC | 4-SMD, Flat Lead Exposed Pad | 4-SMD, Flat Lead Exposed Pad |
| Supplier Device Package | 2-PLCC | 2-PLCC | 2-PLCC | 2-PLCC | 2-PLCC | 2-PLCC | 2-PLCC | 2-PLCC | 2-PLCC | 2-PLCC | 2-PLCC | 2-PLCC | 2-PLCC |
| Size / Dimension | 3.20mm L x 2.80mm W | 3.20mm L x 2.80mm W | 3.20mm L x 2.80mm W | 3.20mm L x 2.80mm W | 3.20mm L x 2.80mm W | 3.20mm L x 2.80mm W | 3.20mm L x 2.80mm W | 3.20mm L x 2.80mm W | 3.20mm L x 2.80mm W | 3.20mm L x 2.80mm W | 3.20mm L x 2.80mm W | 3.20mm L x 2.80mm W | 3.20mm L x 2.80mm W |
| Height (Max) | 2.10mm | 2.10mm | 2.10mm | 2.10mm | 2.10mm | 2.10mm | 2.10mm | 2.10mm | 2.10mm | 2.10mm | 2.10mm | 2.10mm | 2.10mm |
