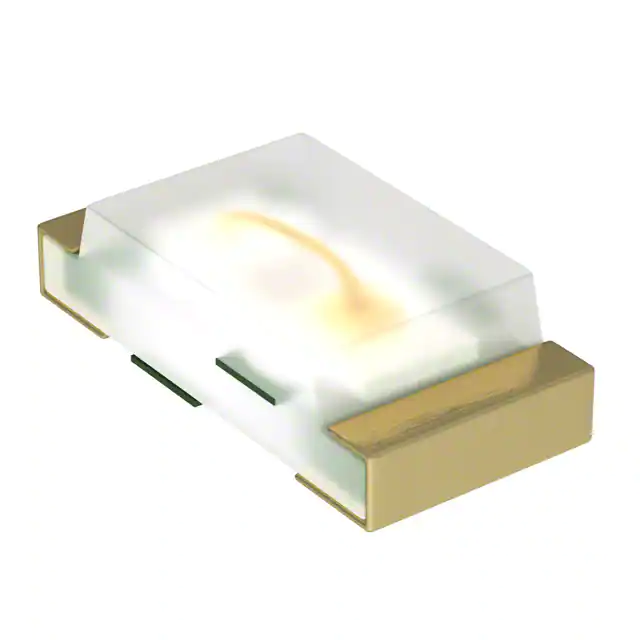

| Part Number | ASMT-RJ45-AQ502 | ASMT-RH45-AQ502 |
|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active |
| Color | Orange | Red |
| Configuration | Standard | Standard |
| Lens Color | White | White |
| Lens Transparency | Diffused | Diffused |
| Millicandela Rating | 130mcd | - |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 1.10mm x 0.80mm | 1.10mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 2V | - |
| Current - Test | 20mA | 20mA |
| Viewing Angle | 145° | 145° |
| Mounting Type | Surface Mount | Surface Mount |
| Wavelength - Dominant | 605nm | - |
| Wavelength - Peak | 612nm | - |
| Features | - | - |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | 0603 | 0603 |
| Size / Dimension | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W |
| Height (Max) | 0.55mm | 0.45mm |
