Broadcom Limited-ASMT-QRB2-FCD0E - LED Lighting - Color Product Specifications and Latest Quotes

Color:	Red
Wavelength:	628nm (620nm ~ 635nm)
Current - Test:	150mA
Voltage - Forward (Vf) (Typ):	3.1V
Lumens/Watt @ Current - Test:	19 lm/W
Current - Max:	150mA
Luminous Flux @ Current/Temperature:	9lm (7lm ~ 12lm)
Temperature - Test:	25°C
Viewing Angle:	120°
Mounting Type:	Surface Mount
Package / Case:	4-PLCC
Supplier Device Package:	4-PLCC
Size / Dimension:	0.126" L x 0.110" W (3.20mm x 2.80mm)
Height - Seated (Max):	0.083" (2.10mm)

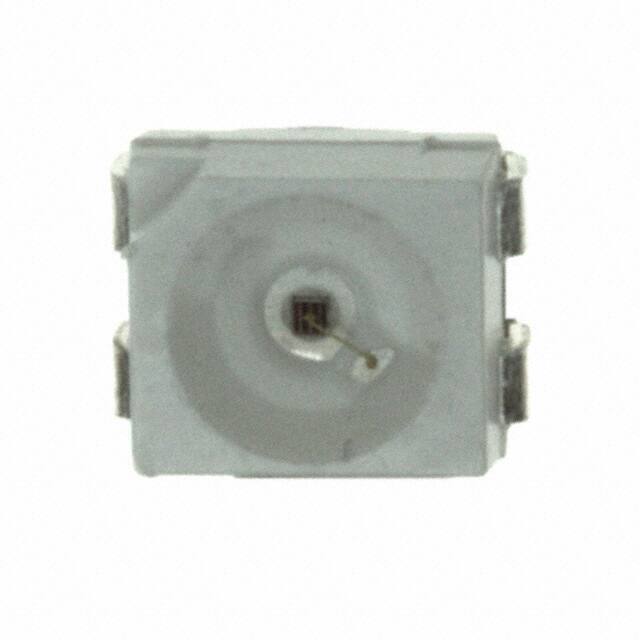

Broadcom Limited ASMT-QRB2-FCD0E
