Please send RFQ , we will respond immediately.

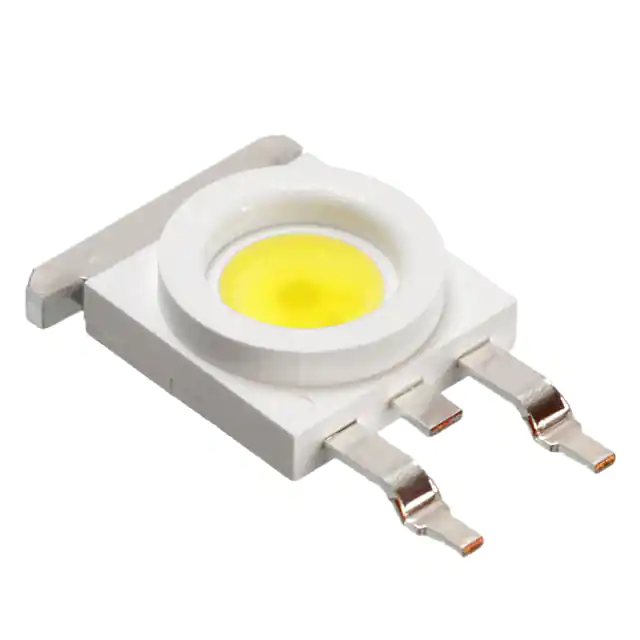

| Part Number | ASMT-MY22-NMP00 | ASMT-MYE2-NMP00 | ASMT-MY22-NMN00 |
|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Obsolete |
| Color | White, Warm | White, Warm | White, Warm |
| CCT (K) | 3300K (2600K ~ 4000K) | 3300K (2600K ~ 4000K) | 3300K (2600K ~ 4000K) |
| Flux @ 85°C, Current - Test | 80lm | 109lm | 102lm |
| Flux @ 25°C, Current - Test | 100lm (95lm ~ 140lm) | 118lm (Typ) | 128lm (95lm ~ 161lm) |
| Current - Test | 350mA | 350mA | 350mA |
| Voltage - Forward (Vf) (Typ) | 3.2V | 3.2V | 3.2V |
| Lumens/Watt @ Current - Test | 89 lm/W | 105 lm/W | 114 lm/W |
| CRI (Color Rendering Index) | - | - | - |
| Current - Max | 700mA | 700mA | 700mA |
| Viewing Angle | 110° | 110° | 120° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.335" L x 0.335" W (8.50mm x 8.50mm) |
| Height - Seated (Max) | 0.134" (3.40mm) | 0.134" (3.40mm) | 0.134" (3.40mm) |
