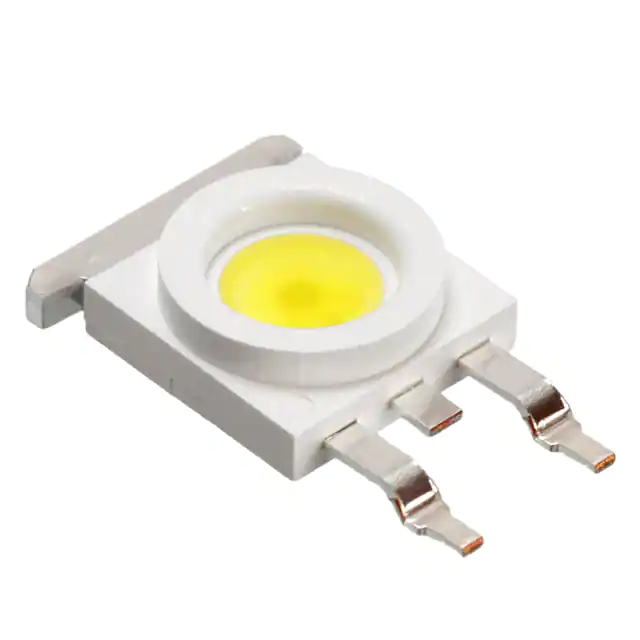

| Part Number | ASMT-MY09-NKL00 | ASMT-MY09-NKLU0 | ASMT-MY09-NKLW0 | ASMT-MY09-NKLZ0 | ASMT-MYB9-NKL00 | ASMT-MY09-NKM00 | ASMT-MW09-NKL00 | ASMT-MY04-NKL00 | ASMT-MY05-NKL00 | ASMT-MY06-NKL00 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Color | White, Warm | White, Warm | White, Warm | White, Warm | White, Warm | White, Warm | White, Cool | White, Warm | White, Warm | White, Warm |
| CCT (K) | 3300K (2600K ~ 4000K) | 3750K (3500K ~ 4000K) | 3250K (3000K ~ 3500K) | 2800K (2600K ~ 3000K) | 3300K (2600K ~ 4000K) | 3300K (2600K ~ 4000K) | 7000K (4000K ~ 10000K) | 3300K (2600K ~ 4000K) | 3300K (2600K ~ 4000K) | 3300K (2600K ~ 4000K) |
| Flux @ 85°C, Current - Test | 66lm | 66lm | 66lm | 66lm | 68lm | 72lm | 62lm | 66lm | 66lm | 66lm |
| Flux @ 25°C, Current - Test | 76lm (56lm ~ 95lm) | 76lm (56lm ~ 95lm) | 76lm (56lm ~ 95lm) | 76lm (56lm ~ 95lm) | 76lm (56lm ~ 95lm) | 90lm (56lm ~ 124lm) | 76lm (56lm ~ 95lm) | 76lm (56lm ~ 95lm) | 76lm (56lm ~ 95lm) | 76lm (56lm ~ 95lm) |
| Current - Test | 350mA | 350mA | 350mA | 350mA | 350mA | 350mA | 350mA | 350mA | 350mA | 350mA |
| Voltage - Forward (Vf) (Typ) | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V | 3.2V | 3.2V | 3.2V |
| Lumens/Watt @ Current - Test | 68 lm/W | 68 lm/W | 68 lm/W | 68 lm/W | 68 lm/W | 80 lm/W | 60 lm/W | 68 lm/W | 68 lm/W | 68 lm/W |
| CRI (Color Rendering Index) | - | - | - | - | - | - | - | - | - | - |
| Current - Max | 350mA | 350mA | 350mA | 350mA | 500mA | 350mA | 350mA | 350mA | 500mA | 500mA |
| Viewing Angle | 120° | 120° | 120° | 120° | 120° | 110° | 120° | 110° | 110° | 110° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | - | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.335" L x 0.335" W (8.50mm x 8.50mm) |
| Height - Seated (Max) | 0.134" (3.40mm) | 0.134" (3.40mm) | 0.134" (3.40mm) | 0.134" (3.40mm) | 0.134" (3.40mm) | 0.134" (3.40mm) | 0.134" (3.40mm) | 0.134" (3.40mm) | 0.134" (3.40mm) | 0.134" (3.40mm) |
