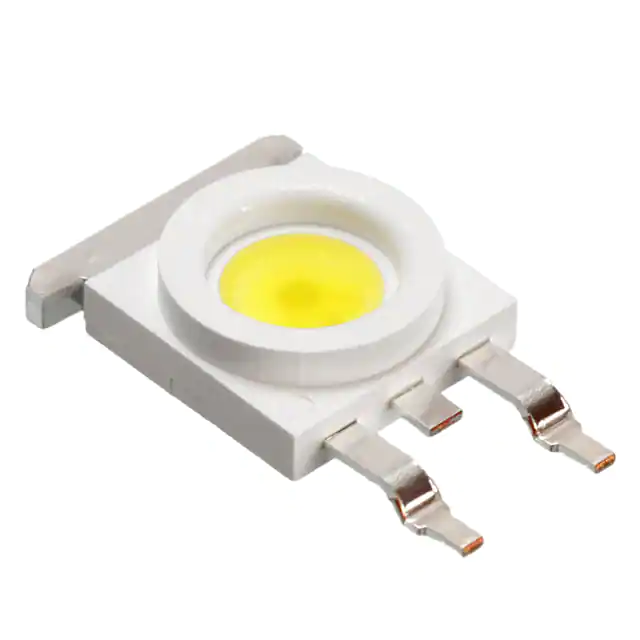

| Part Number | ASMT-MW22-NLNU0 | ASMT-MW22-NNNU0 | ASMT-MW22-NLNW0 | ASMT-MW22-NLNZ0 | ASMT-MW22-NLN00 | ASMT-MW22-NLNS0 |
|---|---|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Color | White, Cool | White, Cool | White, Cool | White, Cool | White, Cool | White, Neutral |
| CCT (K) | 8500K (7000K ~ 10000K) | 8500K (7000K ~ 10000K) | 6300K (5600K ~ 7000K) | 5050K (4500K ~ 5600K) | 7000K (4000K ~ 10000K) | 4250K (4000K ~ 4500K) |
| Flux @ 85°C, Current - Test | 104lm | 127lm | 104lm | 104lm | 104lm | 104lm |
| Flux @ 25°C, Current - Test | 117lm (73lm ~ 161lm) | 143lm (124lm ~ 161lm) | 117lm (73lm ~ 161lm) | 117lm (73lm ~ 161lm) | 117lm (73lm ~ 161lm) | 117lm (73lm ~ 161lm) |
| Current - Test | 350mA | 350mA | 350mA | 350mA | 350mA | 350mA |
| Voltage - Forward (Vf) (Typ) | 3.2V | 3.2V | 3.2V | 3.2V | 3.2V | 3.2V |
| Lumens/Watt @ Current - Test | 104 lm/W | 128 lm/W | 104 lm/W | 104 lm/W | 104 lm/W | 104 lm/W |
| CRI (Color Rendering Index) | - | - | - | - | - | - |
| Current - Max | 700mA | 700mA | 700mA | 700mA | 700mA | 700mA |
| Viewing Angle | 110° | 110° | 110° | 110° | 110° | 110° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.335" L x 0.335" W (8.50mm x 8.50mm) |
| Height - Seated (Max) | 0.134" (3.40mm) | 0.134" (3.40mm) | 0.134" (3.40mm) | 0.134" (3.40mm) | 0.134" (3.40mm) | 0.134" (3.40mm) |
