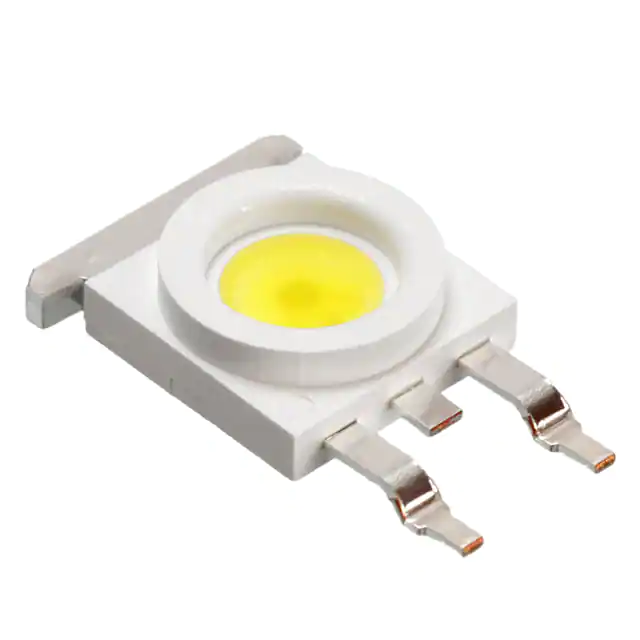

| Part Number | ASMT-MW04-NLN00 | ASMT-MW04-NLN01 |
|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active |
| Color | White, Cool | White, Cool |
| CCT (K) | 7000K | - |
| Flux @ 85°C, Current - Test | - | - |
| Flux @ 25°C, Current - Test | 99lm (73lm ~ 125lm) | - |
| Current - Test | 350mA | 350mA |
| Voltage - Forward (Vf) (Typ) | 3.2V | 3.2V |
| Lumens/Watt @ Current - Test | 88 lm/W | - |
| CRI (Color Rendering Index) | - | - |
| Current - Max | 350mA | 350mA |
| Viewing Angle | 110° | 110° |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | - | - |
| Size / Dimension | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.335" L x 0.335" W (8.50mm x 8.50mm) |
| Height - Seated (Max) | 0.134" (3.40mm) | 0.134" (3.40mm) |
