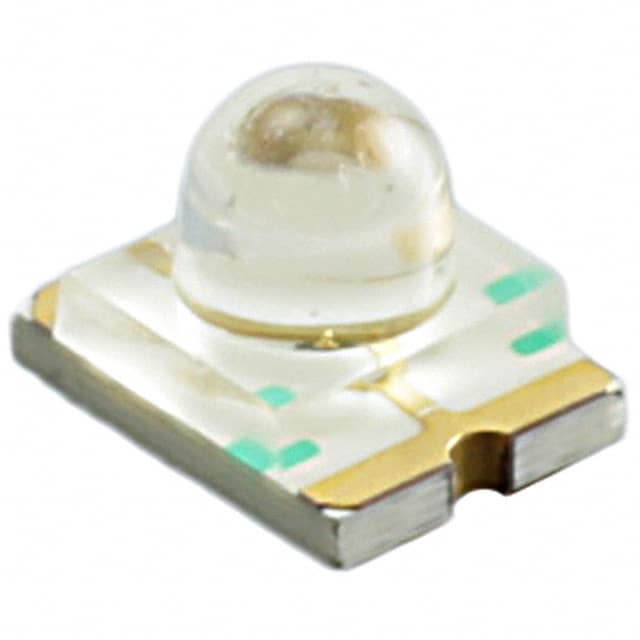

| Part Number | ASMT-BG20-AS000 | ASMT-BR20-AS000 | ASMT-BA20-AS000 |
|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active |
| Color | Green | Red | Amber |
| Configuration | Standard | Standard | Standard |
| Lens Color | Colorless | Colorless | - |
| Lens Transparency | Clear | Clear | Clear |
| Millicandela Rating | 650mcd | 650mcd | 750mcd |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Lens Size | 1.80mm Dia | 1.80mm Dia | 1.80mm Dia |
| Voltage - Forward (Vf) (Typ) | 2V | 2V | 2V |
| Current - Test | 20mA | 20mA | 20mA |
| Viewing Angle | 15° | 15° | 15° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | 569nm | 626nm | 590nm |
| Wavelength - Peak | 565nm | 635nm | 592nm |
| Features | - | - | - |
| Package / Case | 1209 (3224 Metric) | 1209 (3224 Metric) | 1209 (3224 Metric) |
| Supplier Device Package | - | - | 2-SMD |
| Size / Dimension | 3.20mm L x 2.40mm W | 3.20mm L x 2.40mm W | 3.20mm L x 2.40mm W |
| Height (Max) | 2.40mm | 2.40mm | 2.40mm |
