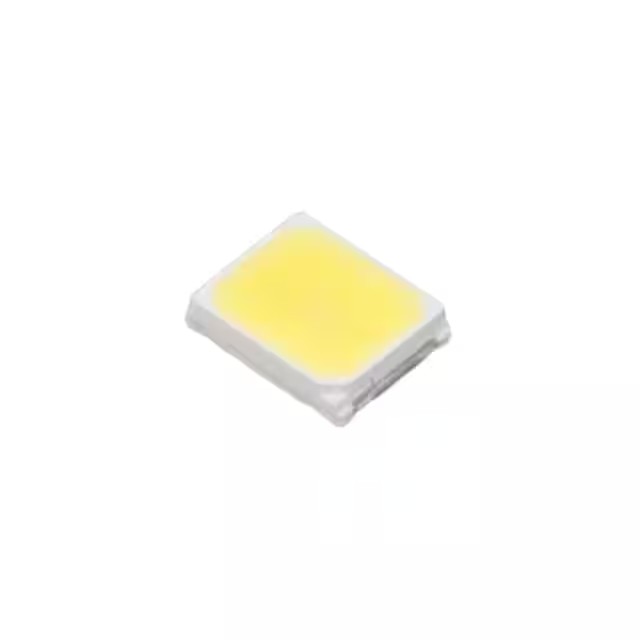

| Part Number | ASMF-LWG4-NRUJD | ASMF-LWG4-NRUFD | ASMF-LWG4-NRUHD |
|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active |
| Color | White, Cool | White, Cool | White, Cool |
| CCT (K) | 6800K | 5700K | 6500K |
| Flux @ 85°C, Current - Test | - | - | - |
| Flux @ 25°C, Current - Test | 27lm (Typ) | 27lm (Typ) | 27lm (Typ) |
| Current - Test | 65mA | 65mA | 65mA |
| Voltage - Forward (Vf) (Typ) | 2.9V | 2.9V | 2.9V |
| Lumens/Watt @ Current - Test | 143 lm/W | 143 lm/W | 143 lm/W |
| CRI (Color Rendering Index) | 80 | 80 | 80 |
| Current - Max | 240mA | 240mA | 240mA |
| Viewing Angle | 120° | 120° | 120° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1212 (3030 Metric) | 1212 (3030 Metric) | 1212 (3030 Metric) |
| Supplier Device Package | 3030 | 3030 | 3030 |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) |
