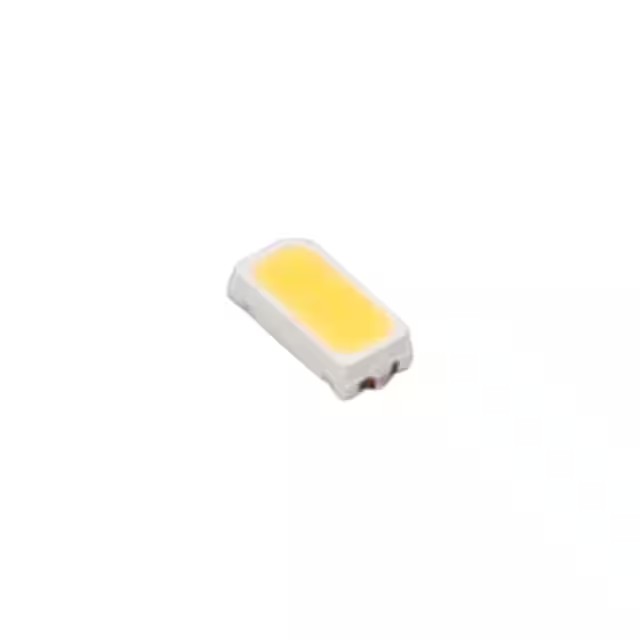

| Part Number | ASMD-LWG3-NQTCD | ASMD-LWG3-NQTDD | ASMD-LWG3-NQTED |
|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Obsolete | Obsolete | Obsolete |
| Color | White, Warm | White, Neutral | White, Cool |
| CCT (K) | 3500K | 4000K | 5000K |
| Flux @ 85°C, Current - Test | - | - | - |
| Flux @ 25°C, Current - Test | 26lm (22lm ~ 30lm) | 26lm (22lm ~ 30lm) | 26lm (22lm ~ 30lm) |
| Current - Test | 65mA | 65mA | 65mA |
| Voltage - Forward (Vf) (Typ) | 2.99V | 2.99V | 2.99V |
| Lumens/Watt @ Current - Test | 134 lm/W | 134 lm/W | 134 lm/W |
| CRI (Color Rendering Index) | 80 | 80 | 80 |
| Current - Max | 200mA | 200mA | 200mA |
| Viewing Angle | 120° | 120° | 120° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1206 (3014 Metric) | 1206 (3014 Metric) | 1206 (3014 Metric) |
| Supplier Device Package | 2-SMD | 2-SMD | 2-SMD |
| Size / Dimension | 0.118" L x 0.055" W (3.00mm x 1.40mm) | 0.118" L x 0.055" W (3.00mm x 1.40mm) | 0.118" L x 0.055" W (3.00mm x 1.40mm) |
| Height - Seated (Max) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) |
