Broadcom Limited-ACPL-W483-500E - Optoisolators - Logic Output Product Specifications and Latest Quotes

Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	30kV/µs
Input Type:	DC
Output Type:	Push-Pull, Totem Pole
Current - Output / Channel:	50 mA
Data Rate:	-
Propagation Delay tpLH / tpHL (Max):	120ns, 120ns
Rise / Fall Time (Typ):	6ns, 6ns
Voltage - Forward (Vf) (Typ):	1.5V
Current - DC Forward (If) (Max):	10mA
Voltage - Supply:	4.5V ~ 30V
Operating Temperature:	-40°C ~ 105°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.268", 6.80mm Width)
Supplier Device Package:	6-SO

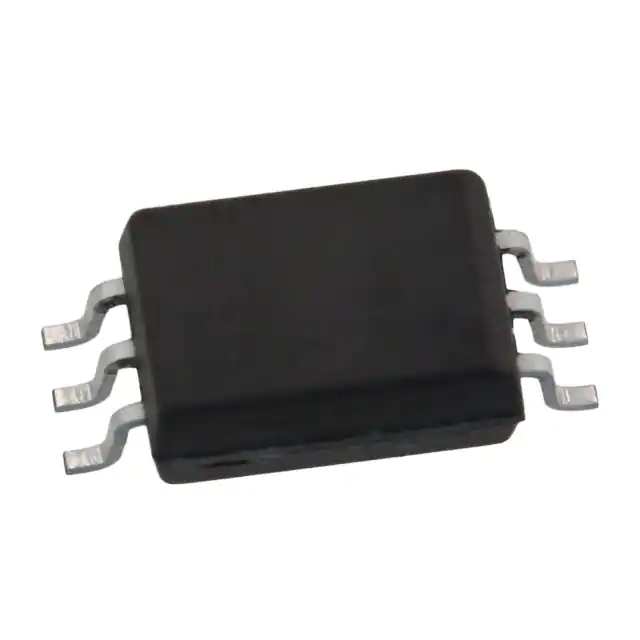

Broadcom Limited ACPL-W483-500E
