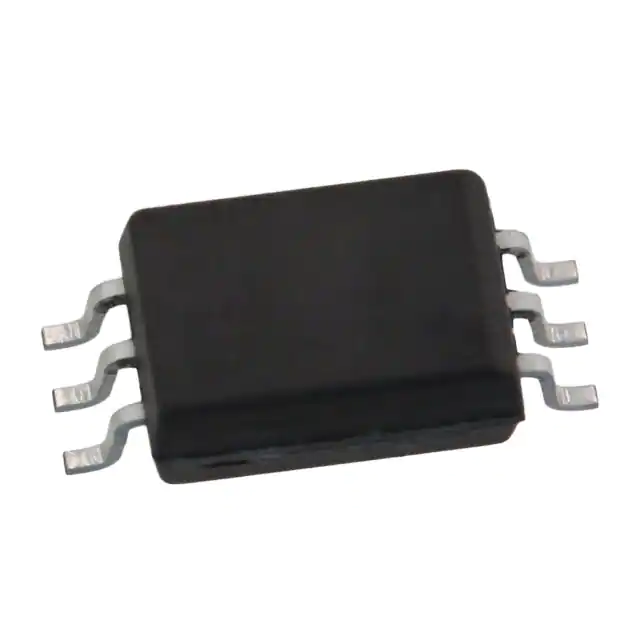

Broadcom Limited-ACPL-W346-500E - Isolators - Gate Drivers Product Specifications and Latest Quotes

Technology:	Optical Coupling
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	50kV/µs
Propagation Delay tpLH / tpHL (Max):	120ns, 120ns
Pulse Width Distortion (Max):	50ns
Rise / Fall Time (Typ):	8ns, 8ns
Current - Output High, Low:	2A, 2A
Current - Peak Output:	2.5A
Voltage - Forward (Vf) (Typ):	1.55V
Current - DC Forward (If) (Max):	25 mA
Voltage - Output Supply:	10V ~ 20V
Operating Temperature:	-40°C ~ 105°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.268", 6.80mm Width)
Supplier Device Package:	6-SO Stretched
Approval Agency:	CSA, UR

Broadcom Limited ACPL-W346-500E
