Broadcom Limited-ACPL-P314-560E - Isolators - Gate Drivers Product Specifications and Latest Quotes

Technology:	Optical Coupling
Number of Channels:	1
Voltage - Isolation:	3750Vrms
Common Mode Transient Immunity (Min):	25kV/µs
Propagation Delay tpLH / tpHL (Max):	700ns, 700ns
Pulse Width Distortion (Max):	-
Rise / Fall Time (Typ):	50ns, 50ns
Current - Output High, Low:	400mA, 400mA
Current - Peak Output:	600mA
Voltage - Forward (Vf) (Typ):	1.5V
Current - DC Forward (If) (Max):	25 mA
Voltage - Output Supply:	10V ~ 30V
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.268", 6.80mm Width)
Supplier Device Package:	6-SO
Approval Agency:	CSA, IEC/EN/DIN, UR

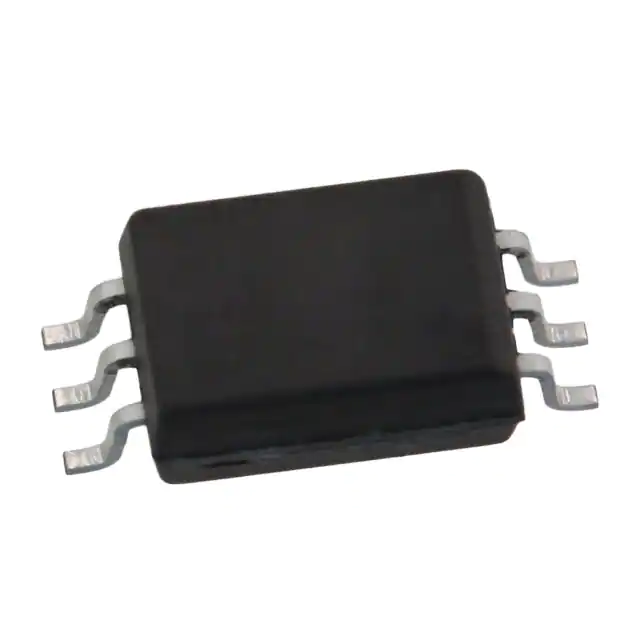

Broadcom Limited ACPL-P314-560E
