Broadcom Limited-ACPL-M61M-060E - Optoisolators - Logic Output Product Specifications and Latest Quotes

Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	3750Vrms
Common Mode Transient Immunity (Min):	200kV/µs
Input Type:	DC
Output Type:	Open Drain
Current - Output / Channel:	10 mA
Data Rate:	10MBd
Propagation Delay tpLH / tpHL (Max):	90ns, 90ns
Rise / Fall Time (Typ):	6ns, 7ns
Voltage - Forward (Vf) (Typ):	1.33V
Current - DC Forward (If) (Max):	8mA
Voltage - Supply:	2.5V ~ 3.3V
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package:	5-SO

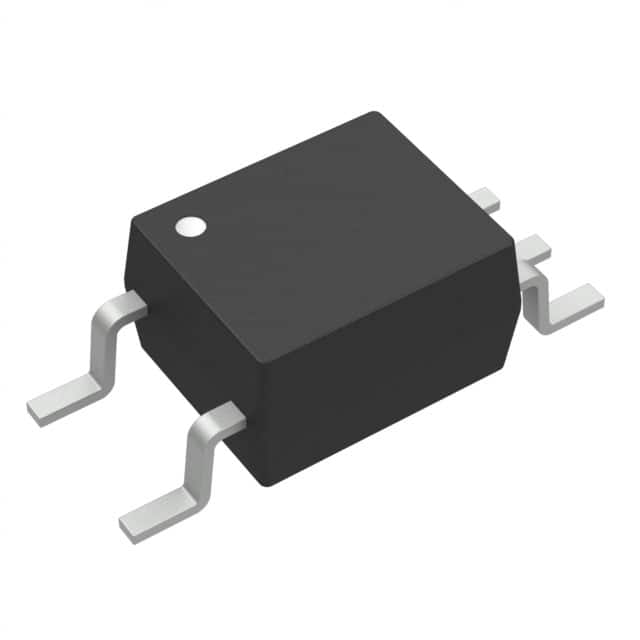

Broadcom Limited ACPL-M61M-060E
