Broadcom Limited-ACPL-K73L-500E - Optoisolators - Logic Output Product Specifications and Latest Quotes

Number of Channels:	2
Inputs - Side 1/Side 2:	2/0
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	10kV/µs
Input Type:	DC
Output Type:	Push-Pull, Totem Pole
Current - Output / Channel:	10 mA
Data Rate:	15MBd
Propagation Delay tpLH / tpHL (Max):	55ns, 55ns
Rise / Fall Time (Typ):	3.5ns, 3.5ns
Voltage - Forward (Vf) (Typ):	1.5V
Current - DC Forward (If) (Max):	10mA
Voltage - Supply:	3V ~ 3.6V, 4.5V ~ 5.5V
Operating Temperature:	-40°C ~ 105°C
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.268", 6.81mm Width)
Supplier Device Package:	8-SO Stretched

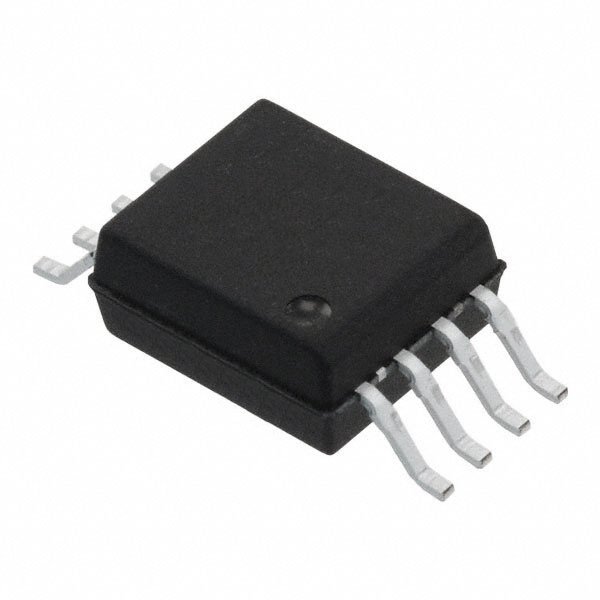

Broadcom Limited ACPL-K73L-500E
