Broadcom Limited-ACPL-K71T-000E - Optoisolators - Logic Output Product Specifications and Latest Quotes

Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	15kV/µs
Input Type:	DC
Output Type:	Push-Pull, Totem Pole
Current - Output / Channel:	-
Data Rate:	-
Propagation Delay tpLH / tpHL (Max):	35ns, 35ns
Rise / Fall Time (Typ):	10ns, 10ns
Voltage - Forward (Vf) (Typ):	1.5V
Current - DC Forward (If) (Max):	20mA
Voltage - Supply:	3V ~ 5.5V
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.268", 6.81mm Width)
Supplier Device Package:	8-SO Stretched

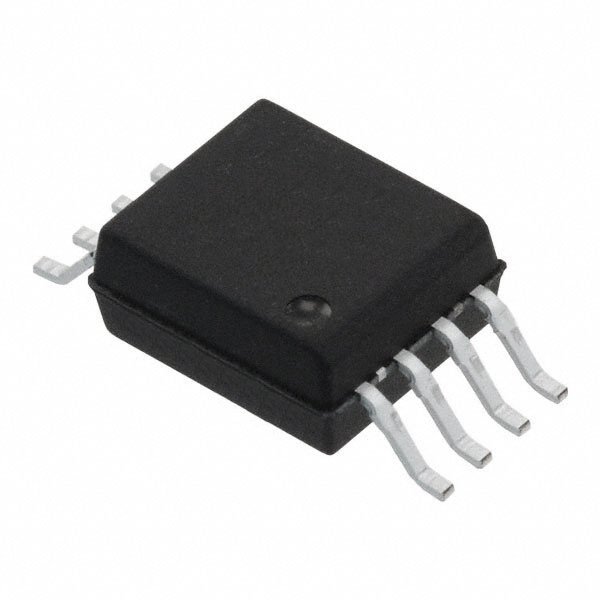

Broadcom Limited ACPL-K71T-000E
