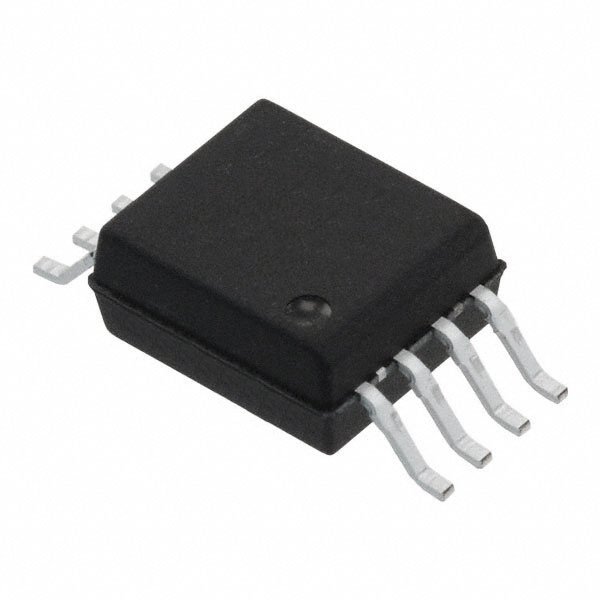

| Part Number | ACPL-C87B-000E | ACPL-C87B-500E | ACPL-C87BT-000E | ACPL-C870-000E | ACPL-C87A-000E |
|---|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active | Active | Active |
| Amplifier Type | Isolation | Isolation | Isolation | Isolation | Isolation |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 |
| Output Type | Differential | Differential | Differential | Differential | Differential |
| Slew Rate | - | - | - | - | - |
| Gain Bandwidth Product | - | - | - | - | - |
| -3db Bandwidth | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Current - Input Bias | 1.5 nA | 1.5 nA | 1 nA | 1.5 nA | 1.5 nA |
| Voltage - Input Offset | 300 µV | 300 µV | 300 µV | 300 µV | 300 µV |
| Current - Supply | 10.5mA | 10.5mA | 10.5mA | 10.5mA | 10.5mA |
| Current - Output / Channel | 30 mA | 30 mA | 30 mA | 30 mA | 30 mA |
| Voltage - Supply Span (Min) | 3 V | 3 V | 3 V | 3 V | 3 V |
| Voltage - Supply Span (Max) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 125°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-SOIC (0.268", 6.81mm Width) | 8-SOIC (0.268", 6.81mm Width) | 8-SOIC (0.268", 6.81mm Width) | 8-SOIC (0.268", 6.81mm Width) | 8-SOIC (0.268", 6.81mm Width) |
| Supplier Device Package | 8-SO Stretched | 8-SO Stretched | 8-SO Stretched | 8-SO Stretched | 8-SO |
