ACPL-824-W00E
  • Share:

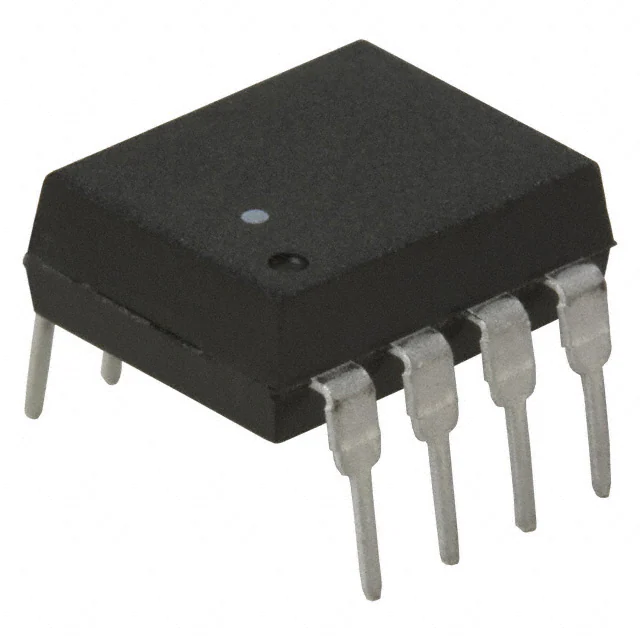

Broadcom Limited ACPL-824-W00E

Manufacturer No:
ACPL-824-W00E
Manufacturer:
Broadcom Limited
Package:
Tube
Datasheet:
ACPL-824-W00E Datasheet
ECAD Model:
-
Description:
OPTOISOLATOR 5KV 2CH TRANS 8DIP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:2
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):20% @ 1mA
Current Transfer Ratio (Max):300% @ 1mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):4µs, 3µs
Input Type:AC, DC
Output Type:Transistor
Voltage - Output (Max):70V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):200mV
Operating Temperature:-30°C ~ 100°C
Mounting Type:Through Hole
Package / Case:8-DIP (0.400", 10.16mm)
Supplier Device Package:8-DIP
0 Remaining View Similar

In Stock

$0.42
1,279

Please send RFQ , we will respond immediately.
