Broadcom Limited-ACPL-2672L - Optoisolators - Logic Output Product Specifications and Latest Quotes

Number of Channels:	2
Inputs - Side 1/Side 2:	2/0
Voltage - Isolation:	1500VDC
Common Mode Transient Immunity (Min):	1kV/µs
Input Type:	DC
Output Type:	Open Collector, Schottky Clamped
Current - Output / Channel:	25 mA
Data Rate:	10MBd
Propagation Delay tpLH / tpHL (Max):	100ns, 100ns
Rise / Fall Time (Typ):	20ns, 8ns
Voltage - Forward (Vf) (Typ):	1.55V
Current - DC Forward (If) (Max):	20mA
Voltage - Supply:	3V ~ 3.6V
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Through Hole
Package / Case:	16-CDIP (0.300", 7.62mm)
Supplier Device Package:	16-CDIP

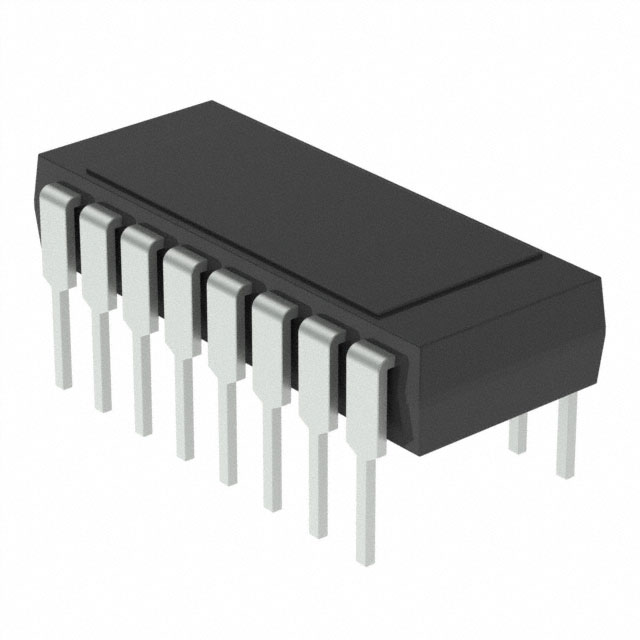

Broadcom Limited ACPL-2672L
