Broadcom Limited-ACNV3130-000E - Isolators - Gate Drivers Product Specifications and Latest Quotes

Technology:	Optical Coupling
Number of Channels:	1
Voltage - Isolation:	7500Vrms
Common Mode Transient Immunity (Min):	40kV/µs
Propagation Delay tpLH / tpHL (Max):	500ns, 500ns
Pulse Width Distortion (Max):	300ns
Rise / Fall Time (Typ):	100ns, 100ns
Current - Output High, Low:	2A, 2A
Current - Peak Output:	2.5A
Voltage - Forward (Vf) (Typ):	1.6V
Current - DC Forward (If) (Max):	25 mA
Voltage - Output Supply:	15V ~ 30V
Operating Temperature:	-40°C ~ 105°C
Mounting Type:	Through Hole
Package / Case:	10-DIP (0.512", 13.01mm)
Supplier Device Package:	10-DIP
Approval Agency:	CSA, IEC/EN/DIN, UR

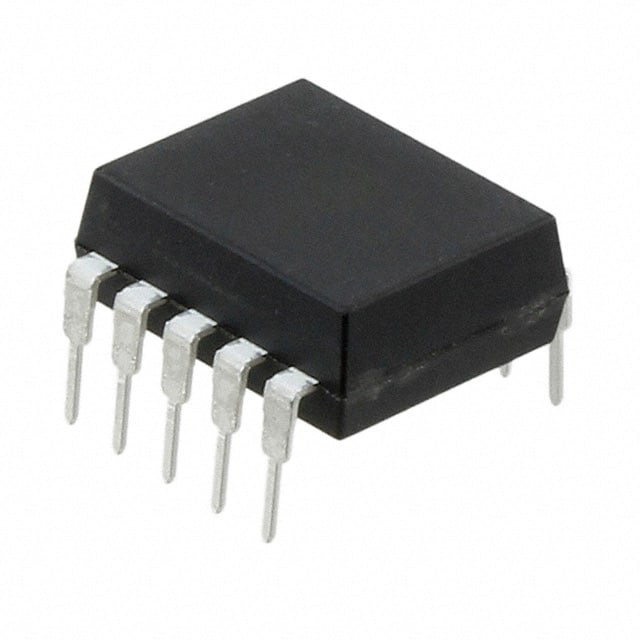

Broadcom Limited ACNV3130-000E
