Broadcom Limited-ACNU-4804-000E - Isolators - Gate Drivers Product Specifications and Latest Quotes

Technology:	Optical Coupling
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	50kV/µs
Propagation Delay tpLH / tpHL (Max):	120ns, 150ns
Pulse Width Distortion (Max):	90ns
Rise / Fall Time (Typ):	6ns, 6ns
Current - Output High, Low:	125mA, 125mA
Current - Peak Output:	-
Voltage - Forward (Vf) (Typ):	1.5V
Current - DC Forward (If) (Max):	20 mA
Voltage - Output Supply:	4.5V ~ 30V
Operating Temperature:	-40°C ~ 105°C
Mounting Type:	Surface Mount
Package / Case:	0605 (1613 Metric)
Supplier Device Package:	8-SSO
Approval Agency:	CSA, UL

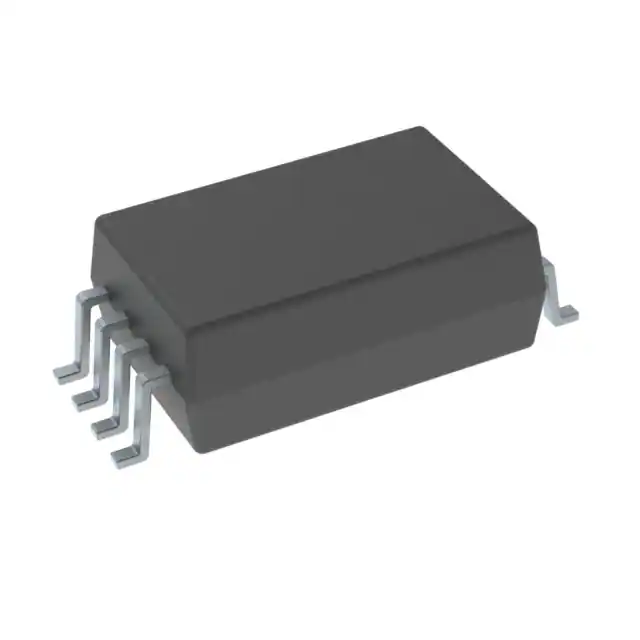

Broadcom Limited ACNU-4804-000E
