Please send RFQ , we will respond immediately.

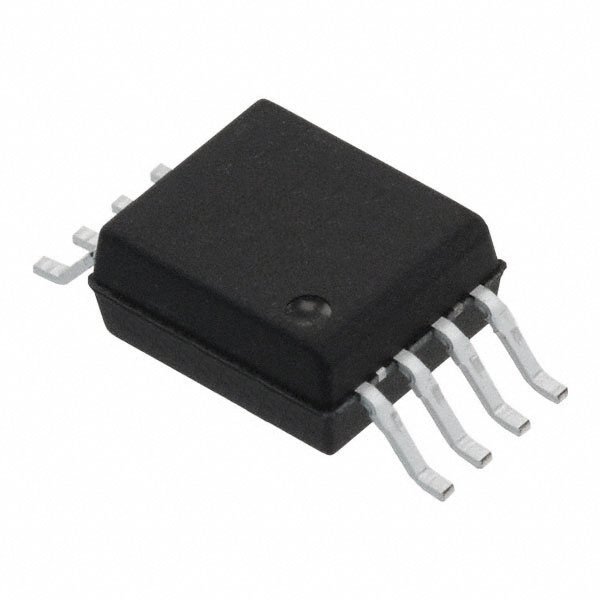

| Part Number | ACNT-H79B-000E | ACNT-H79B-500E | ACNT-H790-000E | ACNT-H79A-000E |
|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active | Active |
| Amplifier Type | Isolation | Isolation | Isolation | Isolation |
| Number of Circuits | 1 | 1 | 1 | 1 |
| Output Type | Differential | Differential | - | - |
| Slew Rate | - | - | - | - |
| Gain Bandwidth Product | - | - | - | - |
| -3db Bandwidth | 200 kHz | 200 kHz | 200 kHz | 200 kHz |
| Current - Input Bias | 100 nA | 100 nA | 100 nA | 100 nA |
| Voltage - Input Offset | 200 µV | 200 µV | 200 µV | 200 µV |
| Current - Supply | 19mA | 19mA | 19mA | 19mA |
| Current - Output / Channel | 11 mA | 11 mA | 11 mA | 11 mA |
| Voltage - Supply Span (Min) | 3 V | 3 V | 3 V | 3 V |
| Voltage - Supply Span (Max) | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-SOIC (0.535", 13.60mm Width) | 8-SOIC (0.535", 13.60mm Width) | 8-SOIC (0.535", 13.60mm Width) | 8-SOIC (0.535", 13.60mm Width) |
| Supplier Device Package | 8-SO Stretched | 8-SO Stretched | 8-SO Stretched | 8-SO Stretched |
