ACNT-H511C-000E
  • Share:

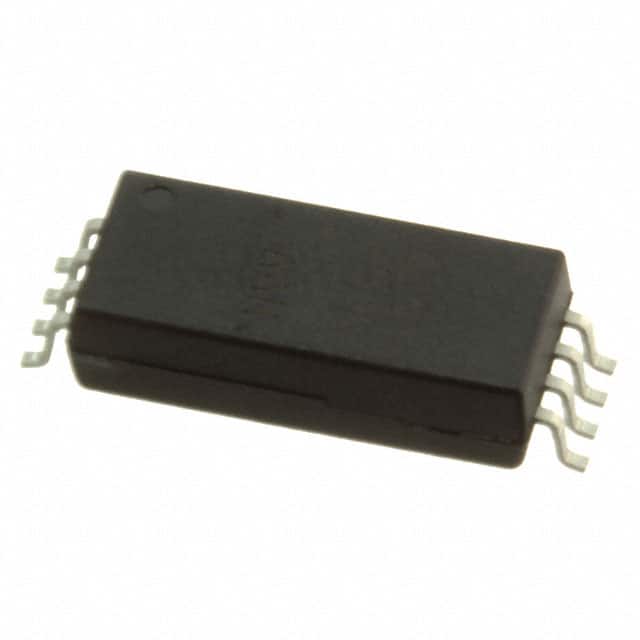

Broadcom Limited ACNT-H511C-000E

Manufacturer No:
ACNT-H511C-000E
Manufacturer:
Broadcom Limited
Package:
Tube
Datasheet:
ACNT-H511C-000E Datasheet
ECAD Model:
-
Description:
15MM CTI600V OPTOCOUPLER (1MBD)
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:1
Voltage - Isolation:7500Vrms
Current Transfer Ratio (Min):31% @ 12mA
Current Transfer Ratio (Max):80% @ 12mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Transistor with Base
Voltage - Output (Max):24V
Current - Output / Channel:12mA
Voltage - Forward (Vf) (Typ):1.45V
Current - DC Forward (If) (Max):20 mA
Vce Saturation (Max):-
Operating Temperature:-40°C ~ 105°C
Mounting Type:Surface Mount
Package / Case:8-SOIC (0.535", 13.60mm Width)
Supplier Device Package:8-SO Stretched
0 Remaining View Similar

In Stock

$6.65
3

Please send RFQ , we will respond immediately.
