ACFL-5212T-500E
  • Share:

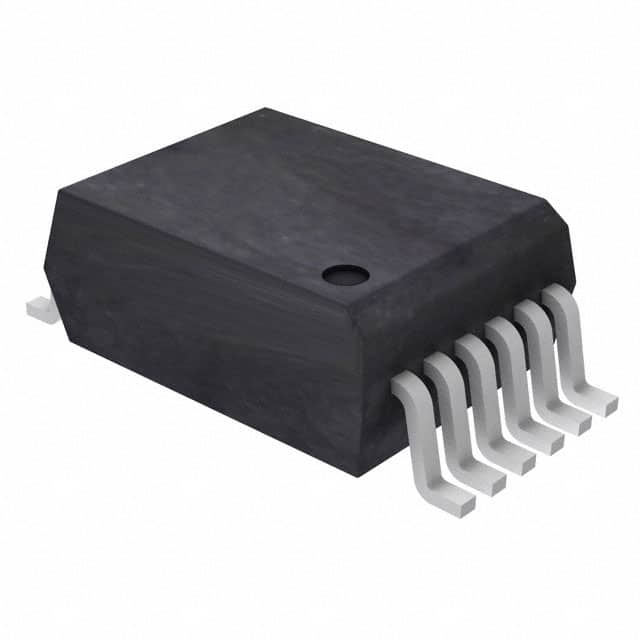

Broadcom Limited ACFL-5212T-500E

Manufacturer No:
ACFL-5212T-500E
Manufacturer:
Broadcom Limited
Package:
Tape & Reel (TR)
Datasheet:
ACFL-5212T-500E Datasheet
ECAD Model:
-
Description:
OPTOISO 5KV 2CH TRANS
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:2
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):32% @ 10mA
Current Transfer Ratio (Max):100% @ 10mA
Turn On / Turn Off Time (Typ):20µs, 20µs (Max)
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):20V
Current - Output / Channel:8mA
Voltage - Forward (Vf) (Typ):1.5V
Current - DC Forward (If) (Max):20 mA
Vce Saturation (Max):-
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:12-BSOP (0.295", 7.50mm Width)
Supplier Device Package:12-SO
0 Remaining View Similar

In Stock

$2.07
81

Please send RFQ , we will respond immediately.
