8302401XA
  • Share:

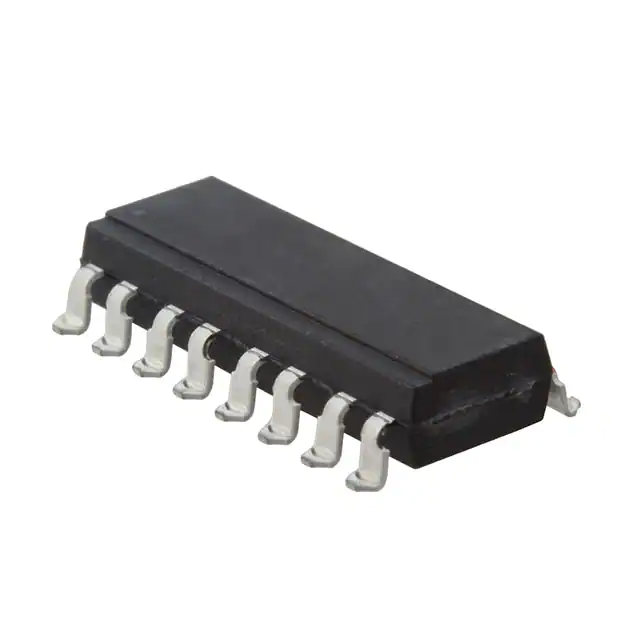

Broadcom Limited 8302401XA

Manufacturer No:
8302401XA
Manufacturer:
Broadcom Limited
Package:
Tube
Datasheet:
8302401XA Datasheet
ECAD Model:
-
Description:
OPTOISO 1.5KV 4CH DARL 16-SMD GW
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:4
Voltage - Isolation:1500VDC
Current Transfer Ratio (Min):200% @ 5mA
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):2µs, 8µs
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Darlington
Voltage - Output (Max):20V
Current - Output / Channel:40mA
Voltage - Forward (Vf) (Typ):1.4V
Current - DC Forward (If) (Max):10 mA
Vce Saturation (Max):110mV
Operating Temperature:-55°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:16-SMD, Gull Wing
Supplier Device Package:16-SMD Gull Wing
0 Remaining View Similar

In Stock

$107.53
2

Please send RFQ , we will respond immediately.
