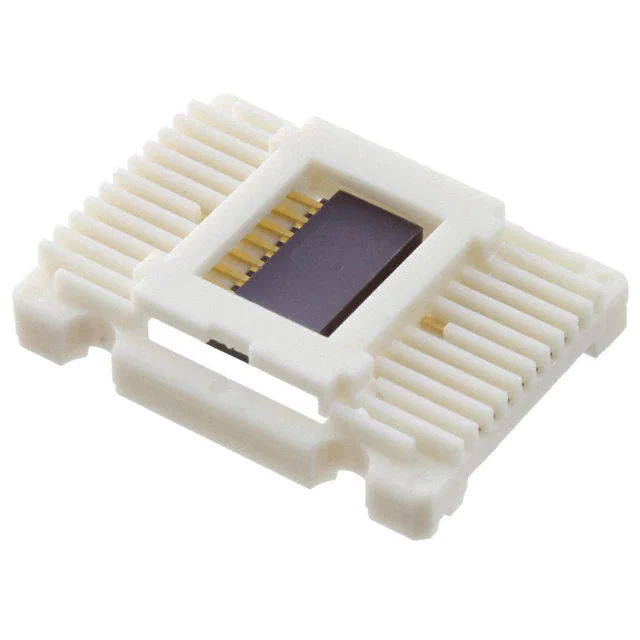

Broadcom Limited 8302401FC

Manufacturer No:
8302401FC
Manufacturer:
Broadcom Limited
Package:
Tube
Datasheet:
8302401FC Datasheet
ECAD Model:
-
Description:
OPTOISO 1.5KV 4CH DARL 16FLATPAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:4
Voltage - Isolation:1500VDC
Current Transfer Ratio (Min):200% @ 5mA
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):2µs, 8µs
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Darlington
Voltage - Output (Max):20V
Current - Output / Channel:40mA
Voltage - Forward (Vf) (Typ):1.4V
Current - DC Forward (If) (Max):10 mA
Vce Saturation (Max):110mV
Operating Temperature:-55°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:16-Flatpack
Supplier Device Package:16-Flatpack
0 Remaining View Similar

In Stock

$150.08
4

Please send RFQ , we will respond immediately.
