5962-8767906KXA
  • Share:

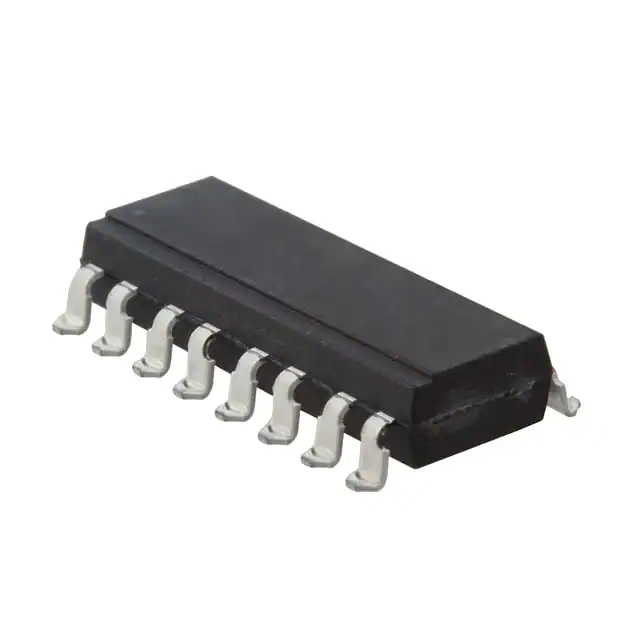

Broadcom Limited 5962-8767906KXA

Manufacturer No:
5962-8767906KXA
Manufacturer:
Broadcom Limited
Package:
Tube
Datasheet:
5962-8767906KXA Datasheet
ECAD Model:
-
Description:
OPTOISO 1.5KV TRANS W/BASE 16SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:2
Voltage - Isolation:1500VDC
Current Transfer Ratio (Min):9% @ 16mA
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):400ns, 1µs
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Transistor with Base
Voltage - Output (Max):20V
Current - Output / Channel:8mA
Voltage - Forward (Vf) (Typ):1.55V
Current - DC Forward (If) (Max):20 mA
Vce Saturation (Max):-
Operating Temperature:-55°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:16-SMD, Gull Wing
Supplier Device Package:16-SMD
0 Remaining View Similar

In Stock

$573.08
3

Please send RFQ , we will respond immediately.
