5082-7613-CD000
  • Share:

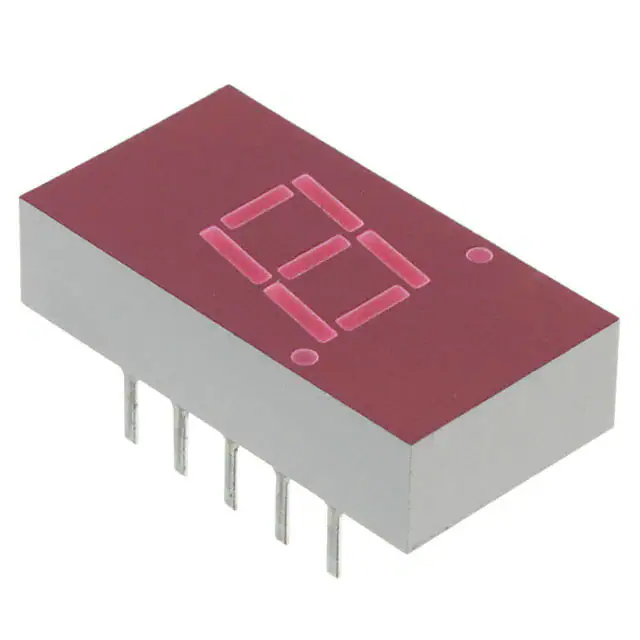

Broadcom Limited 5082-7613-CD000

Manufacturer No:
5082-7613-CD000
Manufacturer:
Broadcom Limited
Package:
Tube
Datasheet:
5082-7613-CD000 Datasheet
ECAD Model:
-
Description:
DISPLAY 7-SEG 0.3" SGL RED 14DIP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Display Format:-
Number of Characters:1
Size / Dimension:0.750" H x 0.400" W x 0.180" D (19.05mm x 10.16mm x 4.57mm)
Digit/Alpha Size:0.30" (7.62mm)
Display Type:7-Segment
Common Pin:Common Cathode
Color:Red
Voltage - Forward (Vf) (Typ):2.1V
Current - Test:20mA
Millicandela Rating:0.8mcd
Wavelength - Peak:635nm
Power Dissipation (Max):105mW
Package / Case:14-DIP (0.300", 7.62mm), 10 Leads
0 Remaining View Similar

In Stock

-
453

Please send RFQ , we will respond immediately.
