4N46-300E
  • Share:

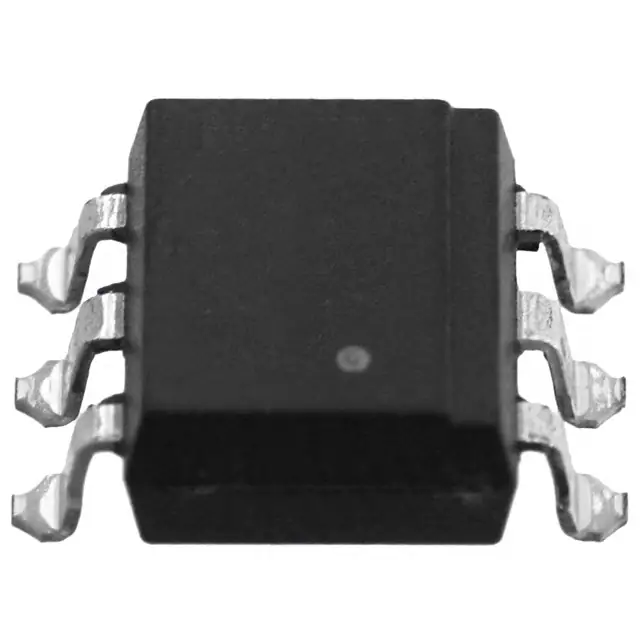

Broadcom Limited 4N46-300E

Manufacturer No:
4N46-300E
Manufacturer:
Broadcom Limited
Package:
Tube
Datasheet:
4N46-300E Datasheet
ECAD Model:
-
Description:
OPTOISO 3.75KV DARL W/BASE 6SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:1
Voltage - Isolation:3750Vrms
Current Transfer Ratio (Min):200% @ 10mA
Current Transfer Ratio (Max):1000% @ 10mA
Turn On / Turn Off Time (Typ):5µs, 150µs
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Darlington with Base
Voltage - Output (Max):20V
Current - Output / Channel:60mA
Voltage - Forward (Vf) (Typ):1.4V
Current - DC Forward (If) (Max):20 mA
Vce Saturation (Max):-
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:6-SMD, Gull Wing
Supplier Device Package:6-SMD
0 Remaining View Similar

In Stock

-
245

Please send RFQ , we will respond immediately.
