Please send RFQ , we will respond immediately.

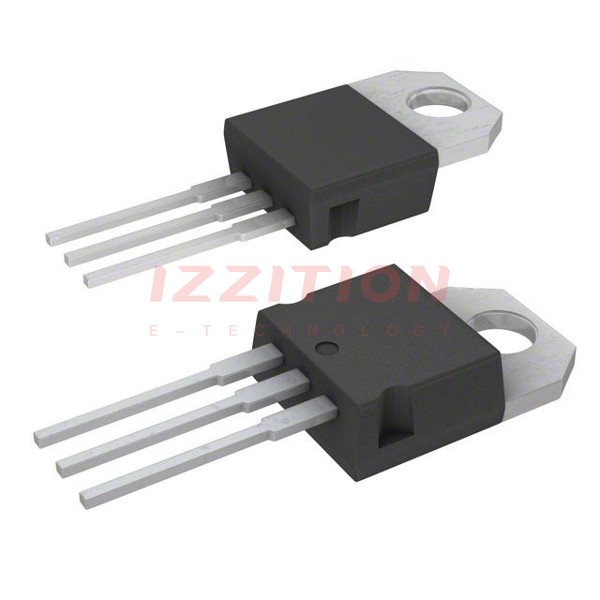

| Part Number | TIPL762A-S | TIPL765A-S | TIPL761A-S | TIPL762-S |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Transistor Type | NPN - Darlington | NPN - Darlington | NPN - Darlington | NPN |
| Current - Collector (Ic) (Max) | 6 A | 10 A | 4 A | 6 A |
| Voltage - Collector Emitter Breakdown (Max) | 450 V | 450 V | 450 V | 400 V |
| Vce Saturation (Max) @ Ib, Ic | 2.5V @ 1.2A, 6A | 2.5V @ 2A, 10A | 2.5V @ 800mA, 4A | 2.5V @ 1.2A, 6A |
| Current - Collector Cutoff (Max) | 50µA | 50µA | 50µA | 50µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 500mA, 5V | 60 @ 500mA, 5V | 60 @ 500mA, 5V | 20 @ 500mA, 5V |
| Power - Max | 120 W | 125 W | 100 W | 120 W |
| Frequency - Transition | - | - | - | 6MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-218-3 | TO-218-3 | TO-218-3 | TO-218-3 |
| Supplier Device Package | SOT-93 | SOT-93 | SOT-93 | SOT-93 |
