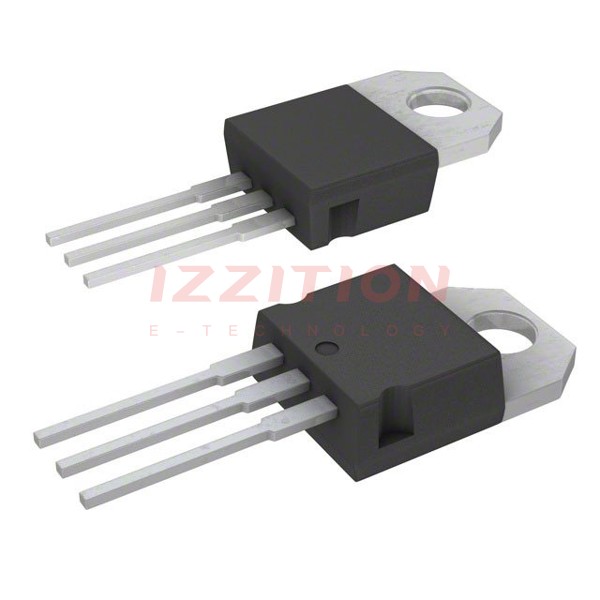

| Part Number | TIC253D-S | TIC263D-S | TIC253M-S | TIC253N-S |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Triac Type | Standard | Standard | Standard | Standard |
| Voltage - Off State | 400 V | 400 V | 600 V | 800 V |
| Current - On State (It (RMS)) (Max) | 20 A | 25 A | 20 A | 20 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V | 2 V | 2 V | 2 V |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 150A @ 50Hz | 175A @ 50Hz | 150A @ 50Hz | 150A @ 50Hz |
| Current - Gate Trigger (Igt) (Max) | 50 mA | 50 mA | 50 mA | 50 mA |
| Current - Hold (Ih) (Max) | 40 mA | 40 mA | 40 mA | 40 mA |
| Configuration | Single | Single | Single | Single |
| Operating Temperature | -40°C ~ 110°C (TC) | -40°C ~ 110°C (TC) | -40°C ~ 110°C (TC) | -40°C ~ 110°C (TC) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-218-3 | TO-218-3 | TO-218-3 | TO-218-3 |
| Supplier Device Package | SOT-93 | SOT-93 | SOT-93 | SOT-93 |
