Please send RFQ , we will respond immediately.

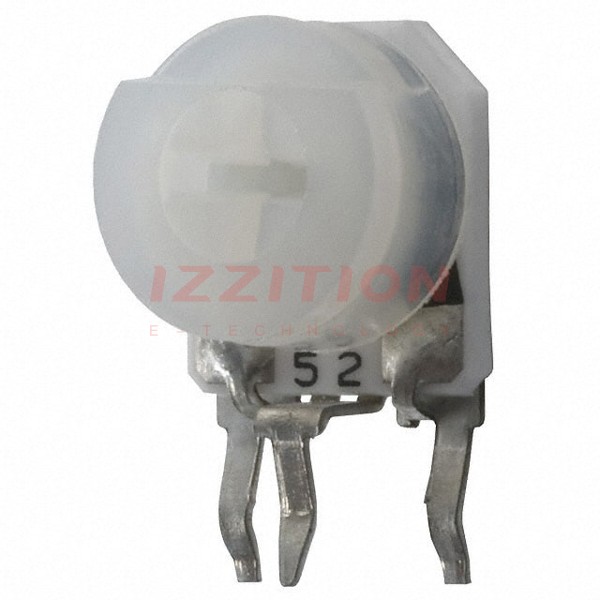

| Part Number | TC86W-1-203 | TC86W-1-503 | TC86W-1-204 | TC89W-1-203 | TC86F-1-203 | TC86K-1-203 | TC86P-1-203 | TC86W-1-103 | TC86W-1-201 | TC86W-1-202 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 20 kOhms | 50 kOhms | 200 kOhms | 20 kOhms | 20 kOhms | 20 kOhms | 20 kOhms | 10 kOhms | 200 Ohms | 2 kOhms |
| Power (Watts) | 0.3W | 0.3W | 0.3W | 0.5W, 1/2W | 0.3W | 0.3W | 0.3W | 0.3W | 0.3W | 0.3W |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Temperature Coefficient | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C |
| Number of Turns | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Top Adjustment | Side Adjustment | Top Adjustment | Side Adjustment | Side Adjustment | Side Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Size / Dimension | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) | Rectangular - 0.346" x 0.315" Face (8.80mm x 8.00mm) | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) |
