Please send RFQ , we will respond immediately.

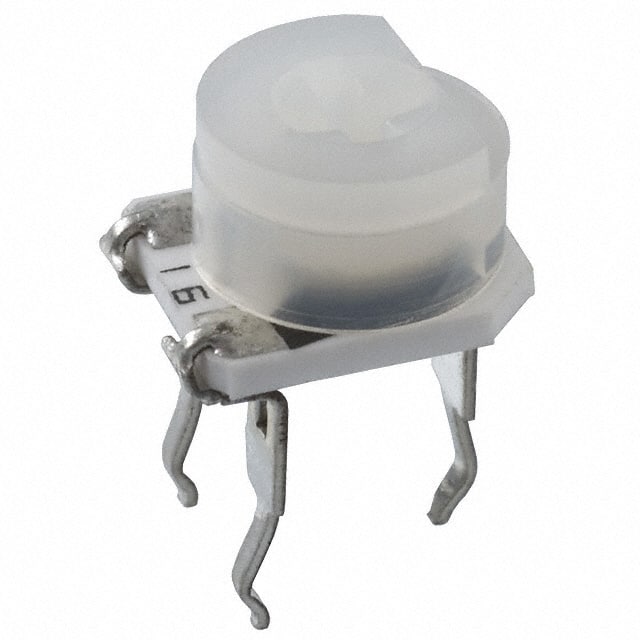

| Part Number | TC86F-1-504 | TC86K-1-504 | TC86P-1-504 | TC86W-1-504 | TC86F-1-104 | TC86F-1-204 | TC86F-1-501 | TC86F-1-502 | TC86F-1-503 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 500 kOhms | 500 kOhms | 500 kOhms | 500 kOhms | 100 kOhms | 200 kOhms | 500 Ohms | 5 kOhms | 50 kOhms |
| Power (Watts) | 0.3W | 0.3W | 0.3W | 0.3W | 0.3W | 0.3W | 0.3W | 0.3W | 0.3W |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Temperature Coefficient | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C |
| Number of Turns | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Top Adjustment | Side Adjustment | Top Adjustment | Side Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Size / Dimension | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) |
