Please send RFQ , we will respond immediately.

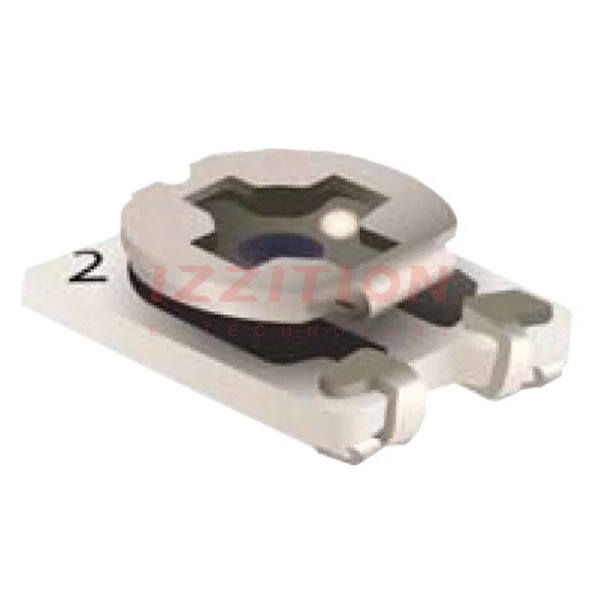

| Part Number | TC42X-2-503E | TC42X-2-504E | TC42X-2-103E | TC42X-2-203E | TC42X-2-303E | TC42X-2-501E | TC42X-2-502E |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 50 kOhms | 500 kOhms | 10 kOhms | 20 kOhms | 30 kOhms | 500 Ohms | 5 kOhms |
| Power (Watts) | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W |
| Tolerance | ±25% | ±25% | ±25% | ±25% | ±25% | ±25% | ±25% |
| Temperature Coefficient | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C |
| Number of Turns | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Termination Style | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead |
| Size / Dimension | Rectangular - 0.102" x 0.087" Face (2.60mm x 2.20mm) | Rectangular - 0.102" x 0.087" Face (2.60mm x 2.20mm) | Rectangular - 0.102" x 0.087" Face (2.60mm x 2.20mm) | Rectangular - 0.102" x 0.087" Face (2.60mm x 2.20mm) | Rectangular - 0.102" x 0.087" Face (2.60mm x 2.20mm) | Rectangular - 0.102" x 0.087" Face (2.60mm x 2.20mm) | Rectangular - 0.102" x 0.087" Face (2.60mm x 2.20mm) |
