Please send RFQ , we will respond immediately.

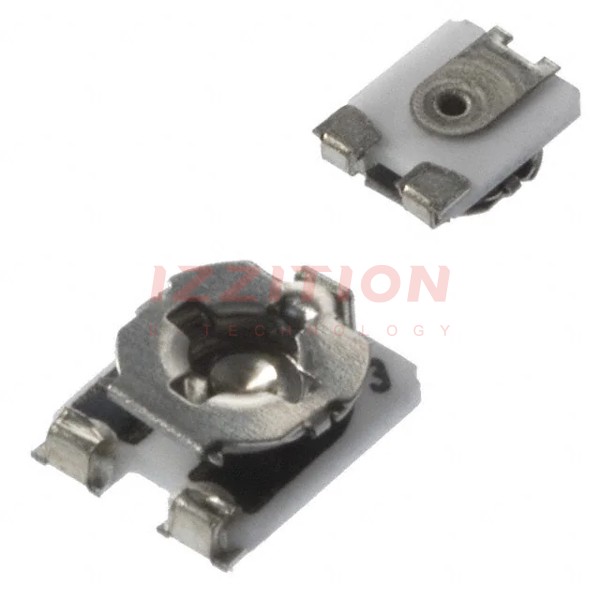

| Part Number | TC33X-2-502E | TC33X-2-503E | TC33X-2-504E | TC33X-2-502G | TC03X-2-502E | TC33X-1-502E | TC33X-2-102E | TC33X-2-202E | TC33X-2-302E | TC33X-2-501E |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Obsolete | Active | Active | Active | Active | Active |
| Resistance | 5 kOhms | 50 kOhms | 500 kOhms | 5 kOhms | 5 kOhms | 5 kOhms | 1 kOhms | 2 kOhms | 3 kOhms | 500 Ohms |
| Power (Watts) | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W |
| Tolerance | ±25% | ±25% | ±25% | ±25% | ±25% | ±25% | ±25% | ±25% | ±25% | ±25% |
| Temperature Coefficient | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C |
| Number of Turns | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Termination Style | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead |
| Size / Dimension | Rectangular - 0.150" x 0.142" Face (3.80mm x 3.60mm) | Rectangular - 0.150" x 0.142" Face (3.80mm x 3.60mm) | Rectangular - 0.150" x 0.142" Face (3.80mm x 3.60mm) | Rectangular - 0.150" x 0.142" Face (3.80mm x 3.60mm) | Rectangular - 0.140" x 0.118" Face (3.55mm x 3.00mm) | Rectangular - 0.150" x 0.142" Face (3.80mm x 3.60mm) | Rectangular - 0.150" x 0.142" Face (3.80mm x 3.60mm) | Rectangular - 0.150" x 0.142" Face (3.80mm x 3.60mm) | Rectangular - 0.150" x 0.142" Face (3.80mm x 3.60mm) | Rectangular - 0.150" x 0.142" Face (3.80mm x 3.60mm) |
