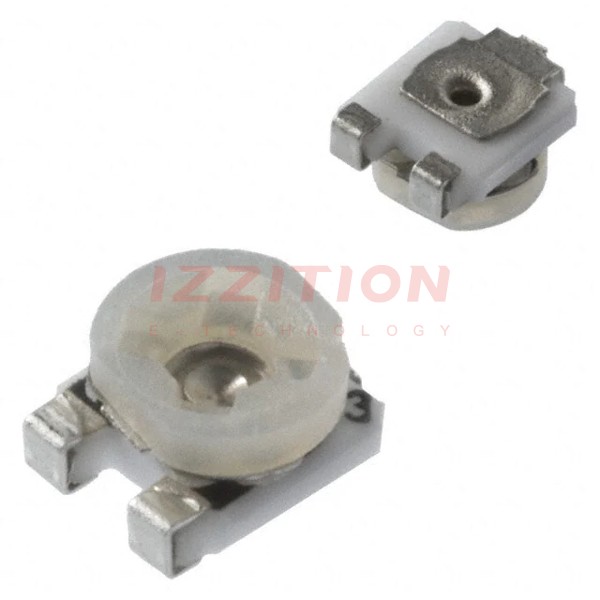

| Part Number | TC03X-2-101E | TC33X-2-101E | TC03X-2-102E | TC03X-2-103E |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Resistance | 100 Ohms | 100 Ohms | 1 kOhms | 10 kOhms |
| Power (Watts) | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W |
| Tolerance | ±25% | ±25% | ±25% | ±25% |
| Temperature Coefficient | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C |
| Number of Turns | 1 | 1 | 1 | 1 |
| Adjustment Type | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Termination Style | J Lead | J Lead | J Lead | J Lead |
| Size / Dimension | Rectangular - 0.140" x 0.118" Face (3.55mm x 3.00mm) | Rectangular - 0.150" x 0.142" Face (3.80mm x 3.60mm) | Rectangular - 0.140" x 0.118" Face (3.55mm x 3.00mm) | Rectangular - 0.140" x 0.118" Face (3.55mm x 3.00mm) |
