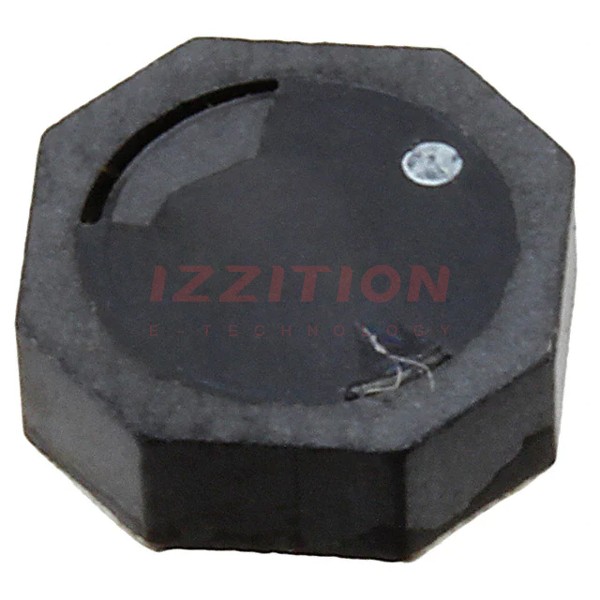

| Part Number | SRU6025-100Y | SRU6025-150Y | SRU6025-101Y | SRU6025A-100Y |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 10 µH | 15 µH | 100 µH | 10 µH |
| Tolerance | ±30% | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 2 A | 1.8 A | 700 mA | 2 A |
| Current - Saturation (Isat) | 1.05A | 920mA | 350mA | 1.05A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 57mOhm Max | 86mOhm Max | 500mOhm Max | 57mOhm Max |
| Q @ Freq | 8 @ 7.96MHz | 12 @ 2.52MHz | 24 @ 2.52MHz | 12 @ 2.52MHz |
| Frequency - Self Resonant | 25MHz | 22MHz | 7MHz | 25MHz |
| Ratings | - | - | - | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.256" L x 0.244" W (6.50mm x 6.20mm) |
| Height - Seated (Max) | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.110" (2.80mm) |
