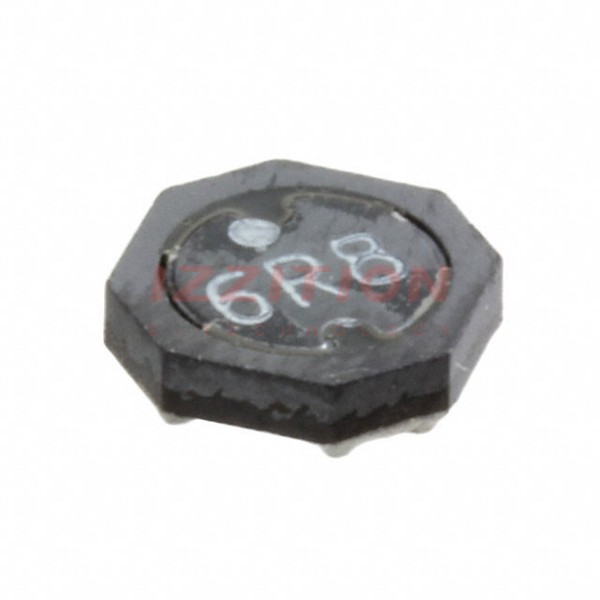

| Part Number | SRU6018-6R8Y | SRU5018-6R8Y |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 6.8 µH | 6.8 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 1.9 A | 1.45 A |
| Current - Saturation (Isat) | 1.2A | 1.2A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 60mOhm Max | 50mOhm |
| Q @ Freq | 8 @ 7.96MHz | 7.5 @ 7.96MHz |
| Frequency - Self Resonant | 40MHz | 60MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) |
