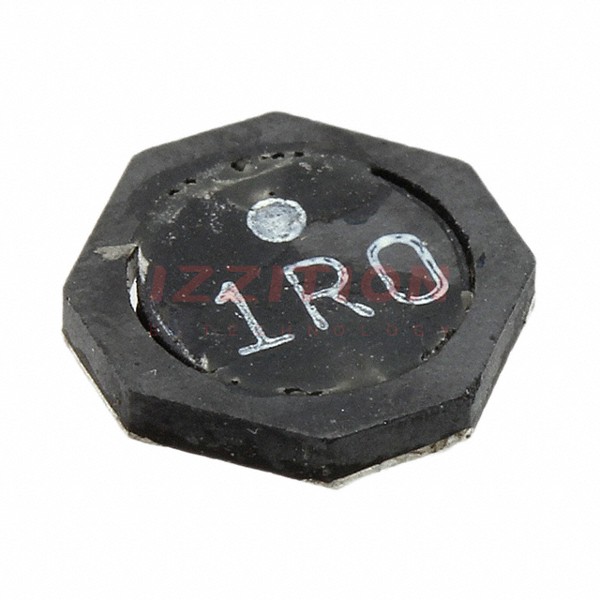

| Part Number | SRU6013-1R5Y | SRU6013-1R0Y |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 1.5 µH | 1 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 3 A | 3.2 A |
| Current - Saturation (Isat) | 2.4A | 2.9A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 40mOhm Max | 36mOhm Max |
| Q @ Freq | 10 @ 7.96MHz | 12 @ 7.96MHz |
| Frequency - Self Resonant | 90MHz | 100MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.256" L x 0.244" W (6.50mm x 6.20mm) |
| Height - Seated (Max) | 0.063" (1.60mm) | 0.063" (1.60mm) |
