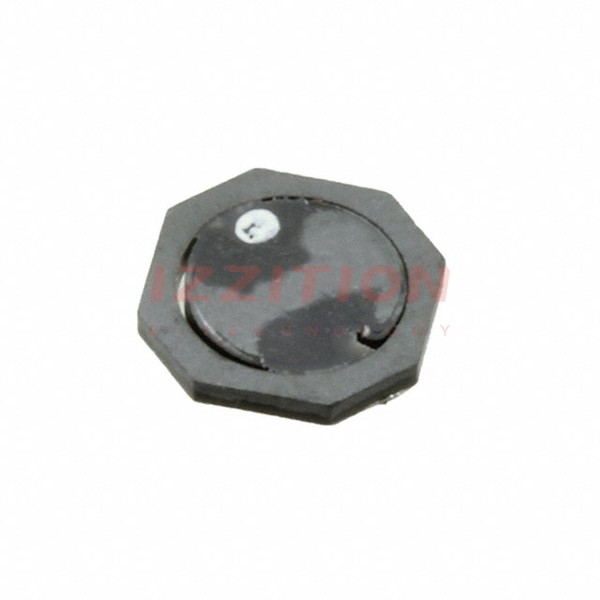

| Part Number | SRU6011-220Y | SRU6013-220Y | SRU5011-220Y |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 22 µH | 22 µH | 22 µH |
| Tolerance | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 800 mA | 950 mA | 500 mA |
| Current - Saturation (Isat) | 480mA | 720mA | 400mA |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 390mOhm Max | 325mOhm Max | 380mOhm |
| Q @ Freq | 10 @ 2.52MHz | 12 @ 2.52MHz | 14 @ 2.52MHz |
| Frequency - Self Resonant | 26MHz | 22MHz | 38MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Height - Seated (Max) | 0.049" (1.25mm) | 0.063" (1.60mm) | 0.047" (1.20mm) |
